LT8627SP

RECOMMENDED FOR NEW DESIGNS

18V/16A Step-Down Silent Switcher 3 with Ultralow Noise Reference

Analog Devices LT8627SP Product Info

10 February 2026 6

Features

Silent Switcher^®3 Architecture

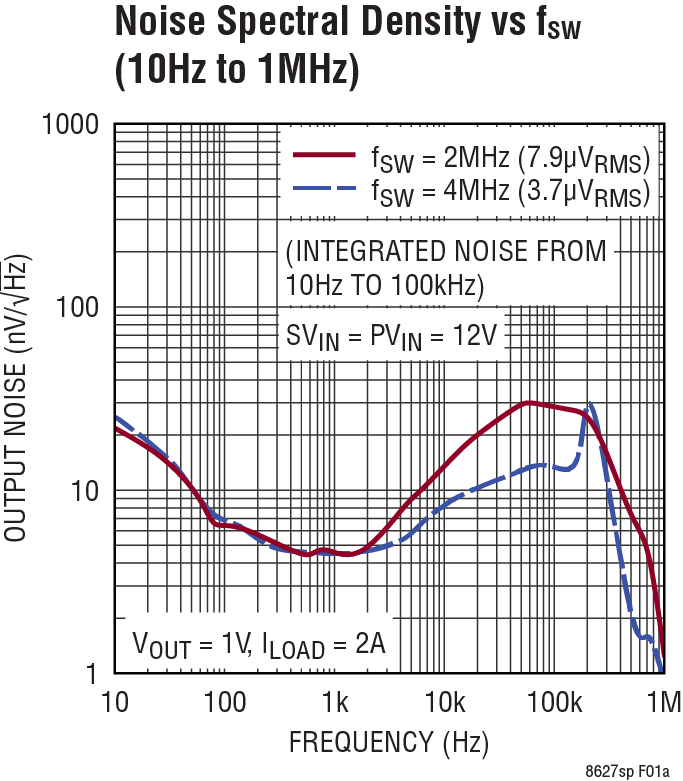

- Ultralow RMS Noise (10Hz to 100kHz): 4μV_RMS
- Ultralow Spot Noise: 4nV/√Hz at 10kHz
- Ultralow EMI Emissions on Any PCB
- Internal Bypass Capacitors Reduce Radiated EMI

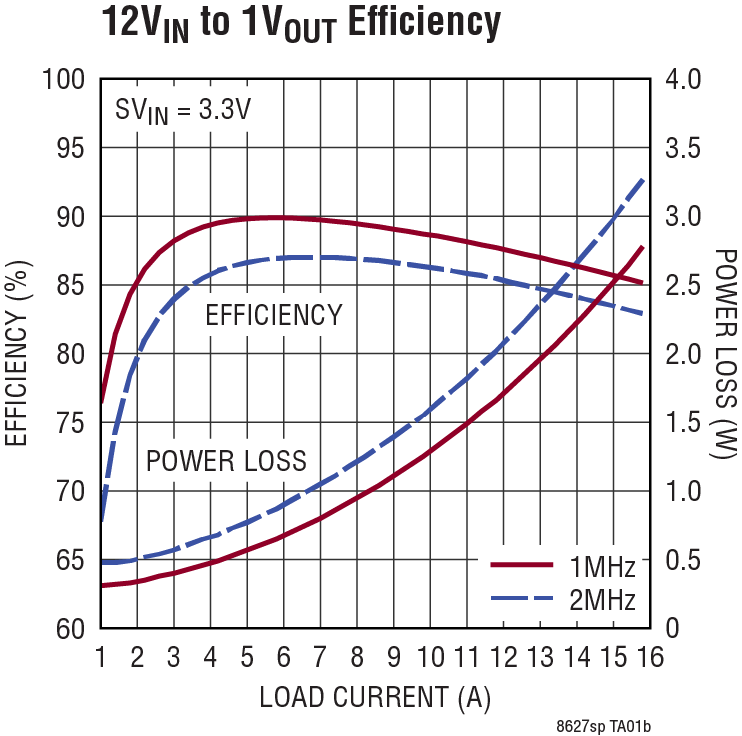

High Efficiency at High Frequency
Ultrafast Transient Response: 1μs
Fast Minimum Switch On-Time: 15ns
Input Voltage Range: 2.8V to 18V

Output Voltage Range: 0V to (PVIN - 0.5V)
16A Maximum Continuous Output Current
Precision Reference: ± 0.8% Over Temperature with Remote Sense
Supports Dynamic Output Voltage Control
PolyPhase^® Operation: Up to 12 Phases
Forced Continuous Mode Capability
Adjustable and Synchronizable: 300kHz to 4MHz
Programmable Power Good
24-Lead 4mm × 4mm LQFN Exposed Back Package for Optional Heat Sink Mount

Part details & applications

The LT8627SP synchronous step-down regulator features third-generation Silent Switcher technology which is uniquely designed to combine an ultralow noise reference with Silent Switcher architecture in order to achieve both high efficiency and excellent wideband noise performance.

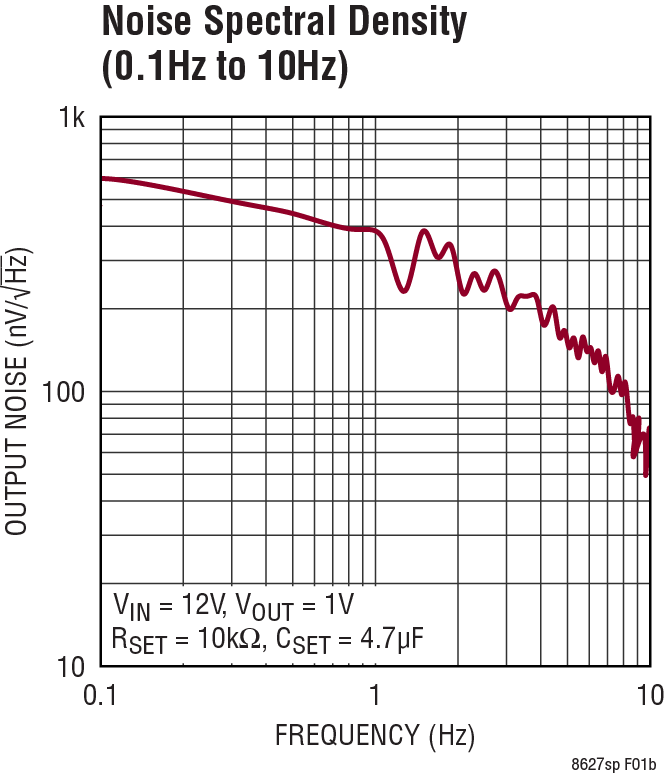

The innovative ultralow noise architecture provides exceptional low frequency (0.1Hz to 100kHz) output noise performance in a switching regulator. The output voltage can be programmed with a single resistor, resulting in virtually constant output noise independent of output voltage.

Silent Switcher architecture minimizes EMI emissions while delivering high efficiency at high switching frequencies. The top of the package features exposed die for optional heat sink attachment which can be used to significantly improve thermal performance.

The LT8627SP is ideal for high current, noise sensitive applications which benefit from the high efficiency of a synchronous switching regulator.

Note: The LT8627SP is pin-to-pin compatible with the LT8625SP-1.

Applications

RF Power Suppliers: PLLs, VCOs, Mixers, LNAs, PAs
High Speed/High Precision ADCs/DACs
Low Noise Instrumentation
