Analog Devices MAXM17502 Product Info

• Reduces Design Complexity, Manufacturing Risks, and Time to Market
  • Integrated Switching Power Supply Controller and Dual-MOSFET Power Switches
  • Integrated Inductor
  • Integrated Compensation Components
  • Integrated Thermal-Fault Protection
  • Integrated Peak Current Limit
• Saves Board Space in Space-Constrained Applications
  • Complete Integrated Step-Down Power Supply in a Single Package
  • Small Profile 6.5mm x 10mm x 2.8mm SiP Package
  • Simplified PCB Design with Minimal External BOM Components
• Offers Flexibility for Power-Design Optimization
  • Wide Input Voltage Range from 4.5V to 60V
  • Output Voltage Adjustable Range from 0.9V to 5.0V
  • Delivers up to 1A Current
  • Shutdown Current as Low as 0.9μA (typ)
  • ±1.8% System Accuracy
  • Fixed-Frequency PWM
  • Programmable Soft-Start and Prebias Startup
  • Optional Programmable EN/UVLO
  • Robust Operation
  • Open-Drain Power Good Output (Active-Low RESET pin)
  • -40°C to +125°C Industrial/Automotive Temperature Range

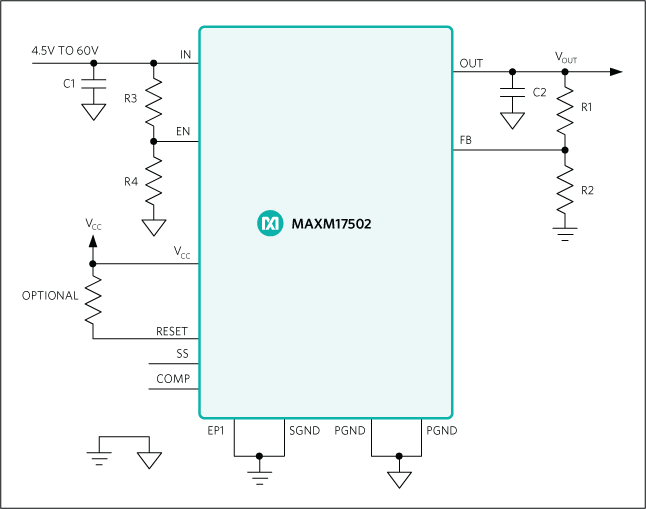

The Himalaya series of voltage regulator ICs and power modules enable cooler, smaller, and simpler power supply solutions. The MAXM17502 is a high-voltage, step-down power module in a family of pin-to-pin compatible modules with built-in thermally efficient system-in-packages (SiPs). The device includes a switch mode power supply controller, MOSFETs, an inductor, as well as the compensation components. The device operates from a 4.5V to 60V input supply voltage and supports adjustable output voltage from 0.9V to 5.0V with an output current of 1A. The high level of integration significantly reduces design complexity, manufacturing risks, and offers a true plug-and-play power supply solution to reduce time to market.

The pin-to-pin compatibility within this family of modules allows design flexibility as the design requirements change. For sequencing purpose, the device features adjustable soft-start time, programmable EN/UVLO threshold, and a power-good indicator (Active-Low RESET pin).

The MAXM17502 is available in a thermally enhanced, compact, 28-pin, 6.5mm x 10mm x 2.8mm SiP package. It operates over the -40°C to +125°C industrial temperature range.

Applications

• Battery-Powered Equipment
• General-Purpose Point-of-Load
• High-Voltage LDO Replacement
• HVAC and Building Control
• Industrial Sensors and Process Control
