MAX96717R

RECOMMENDED FOR NEW DESIGNS

CSI-2 to GMSL2 Serializer

Analog Devices MAX96717R Product Info

10 February 2026 7

Features

Automotive-Grade High-Speed Link
- Supports 19dB Insertion Loss at 1.5GHz
- Auto Adapt for Changes in Channel Conditions
- Operates -40°C to +105°C Ambient
Four-Lane MIPI CSI-2 v1.3 Input Port
- MIPI D-PHY v1.2 Rated at 600Mbps/Lane
- Polarity Flip and Data-Lane Reassignment
- Supports 4 Virtual Channels

Single GMSL2 Output
- 3Gbps in GMSL2 Forward Link-Rate
- 187.5Mbps Reverse Link-Rate
Bidirectional Control Channel Supports
- Seven Configurable GPIO
- 1 x I²C Port, up to 1MHz
Reduce BOM and Space Savings

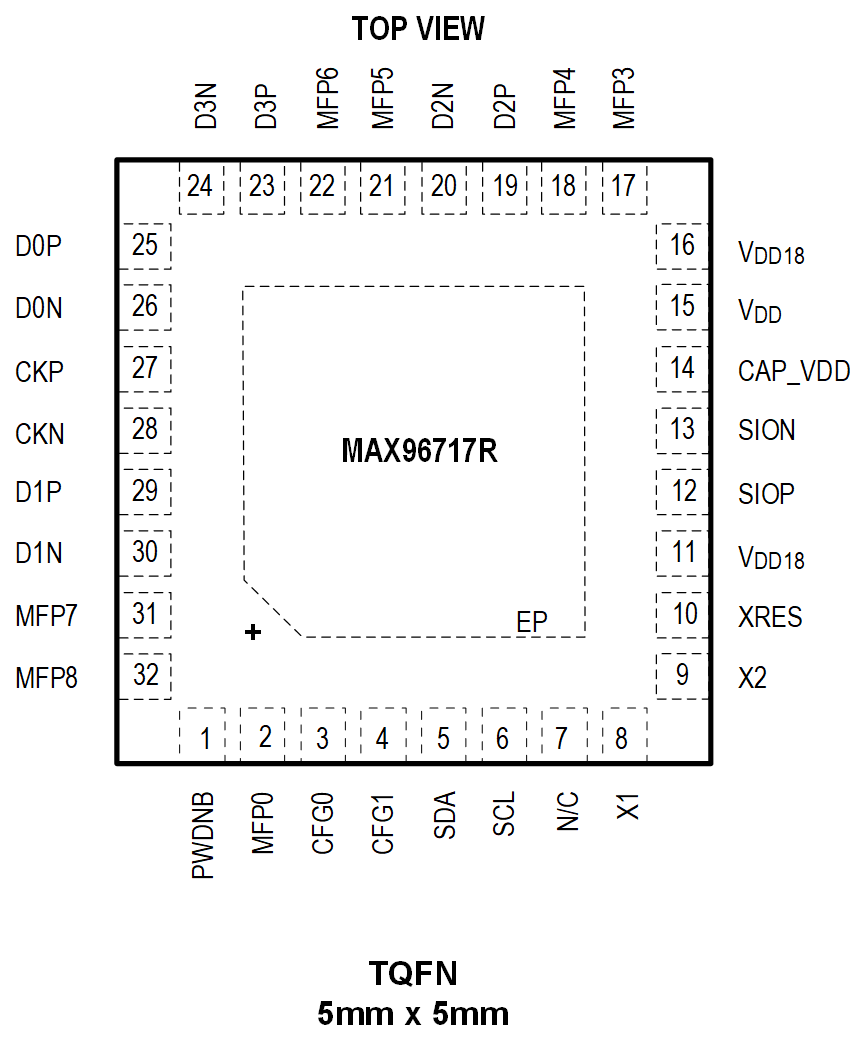

- Tiny, 5mm x 5mm TQFN
- Industry’s Smallest Power over Coax (PoC)

Part details & applications

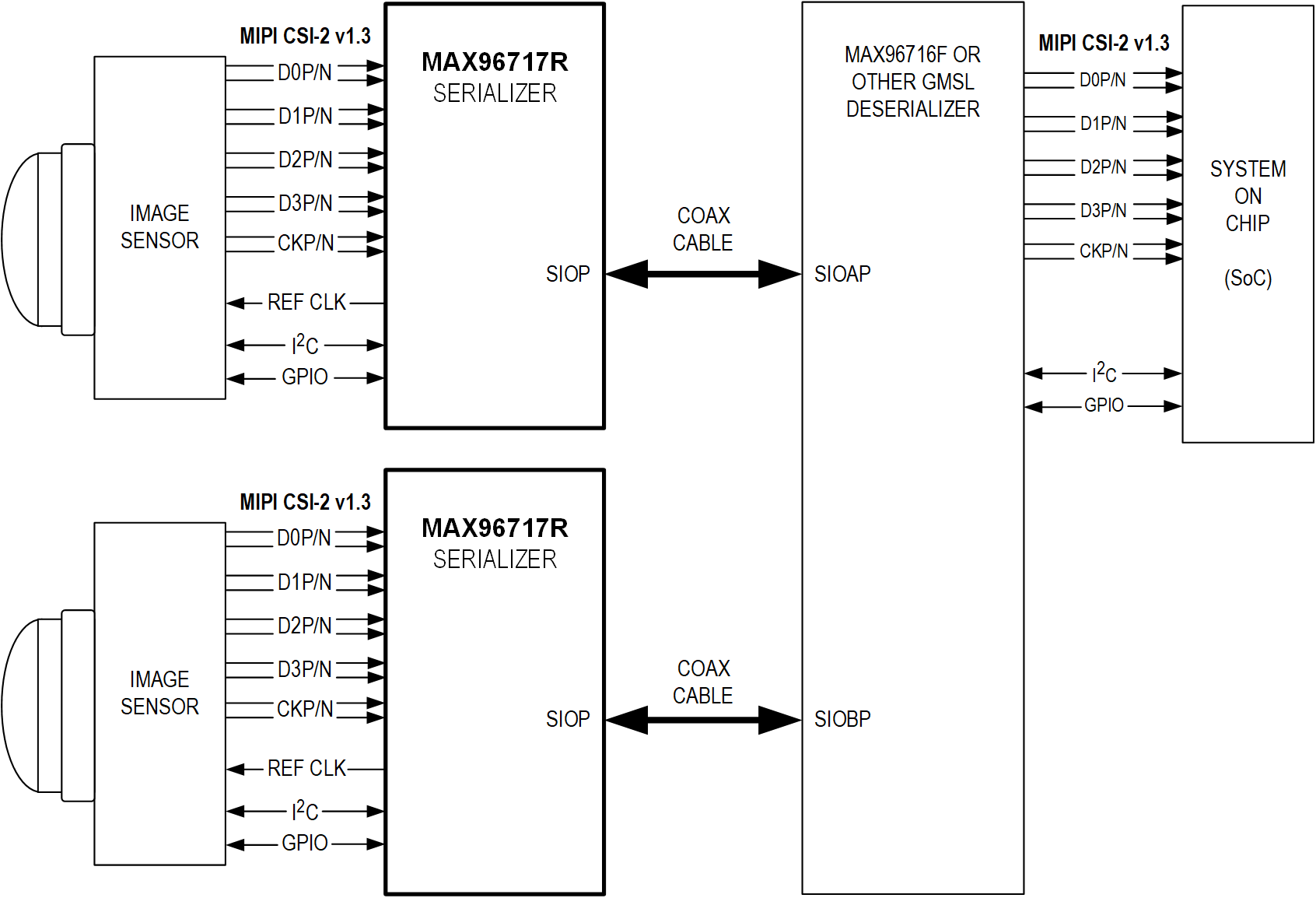

The MAX96717R GMSL^™ serializer receives video on a 4-lane MIPI CSI-2 interface and outputs it on a GMSL2 serial link transceiver for transport over a coaxial cable. Simultaneously, it sends and receives bidirectional control channel data across the same GMSL2 link. The GMSL2link operates at a fixed rate of 3Gbps in the forward direction and 187.5Mbps in the reverse direction. The device is programmed through a local I²C interface or across the link from a matching deserializer. The MAX96717Rfeatures flexible GPIO tunnels and register-programmed GPIO. Operation is specified over the automotive temperature range of -40°C to +105°C. The device is AEC-Q100grade 2 qualified.

Data can be transported over low-cost 50Ω coax cables that meet the GMSL2 channel specification. Table 1 provides guidance to typical maximum lengths of commonly used automotive cables. Contact the factory for the GMSL2 Channel Specification.

Table 1. Typical Maximum Cable Length vs. Attenuation
	3.2mm Ø 50Ω Coax, Foam Dielectric	2.7mm Ø 50Ω Coax, Solid Dielectric< Subscribe to Welllinkchips ! Your Name * Email Subscribe Popular Posts ● Analog Devices LTC3670 Product Info ● Analog Devices MAX1761 Product Info ● Analog Devices LT3573 Product Info ● Analog Devices LT8650S Product Info ● Analog Devices LTC3124 Product Info ● Analog Devices MAX18002 Product Info ● Analog Devices MAX16938 Product Info ● Analog Devices LTC3409 Product Info ● Analog Devices LT1777 Product Info ● Analog Devices MAX1700 Product Info Featured Parts More > LTC6803HG-4#3ZZTRPBF Analog Devices Inc. Submit a request Submit a request Our salesman will contact you by email after submitting the message! * Part Number: * Quantity: * E-mail: Target price: Name: Company name: Please fill the item with * SUBMITTED SUCCESSFULLY！ Our Salesman will respond within 24 hours. Please pay attention to your mailbox. Thank you for your advice. IRS2092STRPBF Infineon Technologies * Qty: Add RFQ List RFQ Directly DON'T MISS OUT Shipping For Free Submit the inquiry in this window, you can get a chance to free shipping. 1.Submit your parts requirements and fill in your email address. 2.Our sales staff gets in touch with you and communicate the details of orders. OK,let’s see NO,keep going In order to provide you with the best website experience, we use cookies. For more information about how we use cookies and manage your preferences, please refer to our privacy policy. By using our website, you agree to use cookies. CONTACT US [email protected] Company address WELL LINK CHIPS GROUP CO.,LIMITED FLAT/RM 1802 BEVERLY HOUSE 93-107 LOCKHART ROAD WANCHAI HK FOLLOW US © 2022 WELL LINK CHIPS GROUP CO., LIMITED All Rights Reserved. Privacy Policy \| Terms and Conditions Send Enquiry SEND e-MAIL Office hour from 9am to 6pm , Monday through Friday, UTC/GMT +8
