MAX8752

NOT RECOMMENDED FOR NEW DESIGNS

TFT LCD Step-Up DC-DC Converter

Analog Devices MAX8752 Product Info

10 February 2026 3

Features

1.8V to 5.5V Input Supply Range

Built-In 14V, 2.2A, 0.2Ω n-Channel MOSFET

High Efficiency (> 85%)

Fast Transient Response to Pulsed Load

High-Accuracy Output Voltage (1.5%)

Internal Digital Soft-Start

Input Supply Undervoltage Lockout

1.2MHz Switching Frequency

0.1µA Shutdown Current

Small 8-Pin TDFN Package

Part details & applications

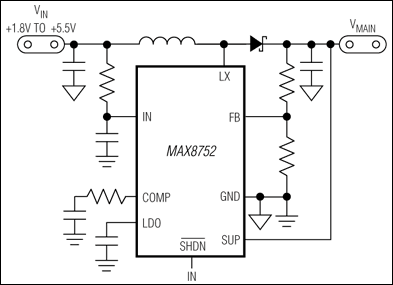

The MAX8752 is a high-performance, step-up DC-DC converter that provides a regulated supply voltage for active-matrix thin-film transistor (TFT) liquid-crystal displays (LCDs). The MAX8752 incorporates current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry with a built-in n-channel power MOSFET to achieve high efficiency and fast transient response. The input supply voltage of the MAX8752 is from 1.8V to 5.5V.

The MAX8752 operates with a switching frequency of 1.2MHz, allowing the use of ultrasmall inductors and low-ESR ceramic capacitors. The current-mode architecture provides fast transient response to the pulsed loads typical of LCD source-driver applications. A compensation pin (COMP) gives users flexibility in adjusting loop dynamics. The 14V internal MOSFET can generate output voltages up to 13V. The internal digital soft-start and current limit effectively control inrush and fault currents.

The MAX8752 is available in a 3mm x 3mm 8-pin TDFN package with a maximum height of 8mm.

Applications

LCD Monitor Panels
Notebook Computer Displays
