ADUM4473

PRODUCTION

Isolated Switch Regulator with Quad-Channel Isolators (1/3 Channel Directionality)

Analog Devices ADUM4473 Product Info

10 February 2026 4

Features

Isolated PWM feedback with built-in compensation
Primary side transformer driver for up to 2.5 W output power with 5 V input voltage
Regulated adjustable output: 3.3 V to 24 V
Up to 80% efficiency
Quad DC-to-25 Mbps (NRZ) signal isolation channels
200 kHz to 1 MHz adjustable oscillator
Soft start function at power-up
Pulse-by-pulse overcurrent protection
Thermal shutdown
5000 V rms isolation

High common-mode transient immunity: >25 kV/μs

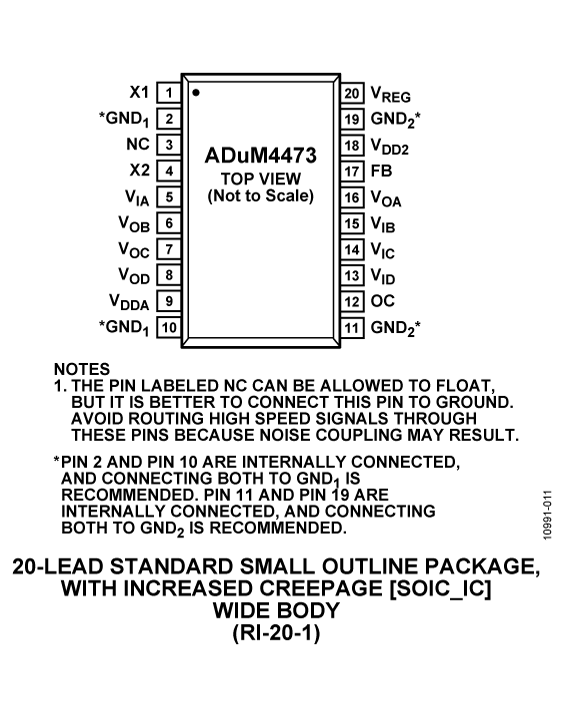

20-lead SOIC package with 8.3 mm creepage
High temperature operation: 105°C
Safety and regulatory approvals

DIN EN IEC 60747-17 (VDE 0884-17)
- V_IORM = 645 V peak
UL 1577
- V_ISO = 5000 V rms for 1 minute
IEC / EN / CSA 62368-1
IEC / CSA 60601-1
IEC / CSA 61010-1

Part details & applications

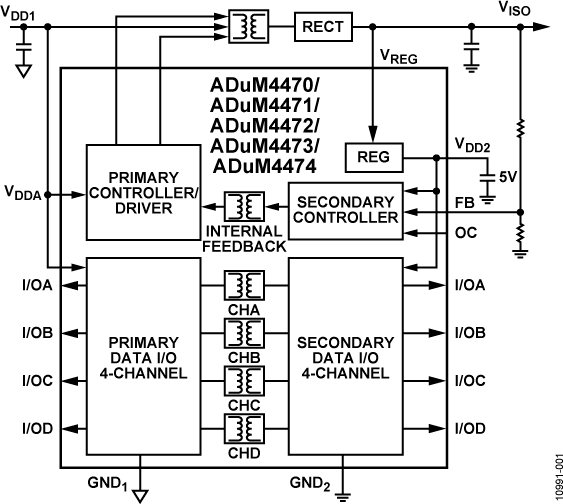

ADuM4470 / ADuM4471 / ADuM4472 / ADuM4473 / ADuM4474 is a four-channel digital isolator with integrated regulated DC-DC isolated power supply controller and integrated internal MOSFET driver. The DC/DC controller has a built-in isolated PWM feedback on the primary side, using iCoupler^® chip-level transformer technology and complete loop compensation. It is not necessary to use an optocoupler for feedback and to compensate the loop for stability.

Compared to unregulated isolated DC/DC power supplies, ADuM447x isolators can provide a more stable output voltage and higher efficiency. It is packaged in a wide-body SOIC, fully integrated feedback and loop compensation, providing a smaller size and 8.3 mm creepage distance solution. Regulated feedback can provide a relatively flat efficiency curve over the entire output power range. AduM3070 can enable a DC/DC converter with an isolated output voltage range of 3.3 V to 24 V from an input voltage of 5.0 V or 3.3 V, with an output power of 2.5 W

ADuM447x isolators provide four independent isolation channels, supporting multiple channel configurations and data rates. (The ADuM447x mentioned in this data sheet represents ADuM4470 / ADuM4471 / ADuM4472 / ADuM4473 / ADuM4474)

APPLICATIONS

Power startup bias and gate drive
Isolation sensor interface
Process control
RS-232/RS-422/RS-485 transceiver
