MAX77887

RECOMMENDED FOR NEW DESIGNS

Nano Power Buck-Boost with Input Voltage Monitor Nano Power Buck-Boost with Input Voltage Monitor

Analog Devices MAX77887 Product Info

10 February 2026 4

Features

1.8V to 5.5V Input Voltage
Output Voltage from 1.8V to 5.2V
Peak Efficiency of 92.5% (5.5V_IN, 3.8V_OUT)
430nA Typical Quiescent Current
10nA Shutdown Current
R_SEL Configurations
- Output Voltage
- 400mA/200mA Switching Current Limit
- 16 Input Voltage Monitoring Threshold Levels

Protection Features
- Input Undervoltage Lockout (UVLO)
- Switching Current Limit
- Thermal Shutdown (THS)
1.36mm x 1.36mm, 9-Bump, 0.4mm Pitch, WLP

Part details & applications

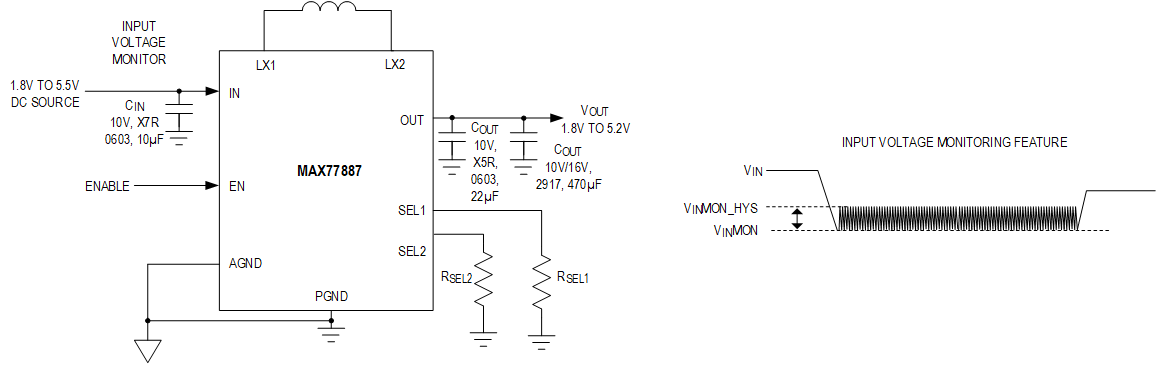

The MAX77887 is a high-efficiency nano power buckboost converter with an input voltage monitoring feature, ensuring that the battery voltage does not drop below the pre-set threshold levels to protect the battery.

The converter operates on an input supply between 1.8V and 5.5V. Output voltage between 1.8V and 5.2V is configured through a resistor connected to the hardware control pin, R_SEL1. It can operate in CCM, Skip, and Low Power Mode to ensure maximum efficiency over a wide range of load currents.

MAX77887 offers two unique hardware control pins R_SEL1 and _SEL2. The resistor connected at SEL1 (R_SEL1) selects the predefined output voltage from 1.8V to 5.2V as OUT. The resistor connected at SEL2 (R_SEL2) allows the configuration of two different Switching Current Limit (I_LIM) levels and 16 Input Voltage Monitoring Threshold levels.

The MAX77887 is available in 1.36mm x 1.36mm, 9- bump, 0.4mm pitch, wafer-level package (WLP).

APPLICATIONS

LPWAN SoC Companion Power Solution
IoT and Wearable Applications
Asset Trackers
Smart Meters
