MAX77371

RECOMMENDED FOR NEW DESIGNS

5A Boost Converter with I2C Interface, Dynamic Voltage Scaling, and Short Circuit Protection 5A Boost Converter with I2C Interface, Dynamic Voltage Scaling, and Short Circuit Protection

Analog Devices MAX77371 Product Info

10 February 2026 6

Features

2.5V to 5.5V Input Voltage Range
4.5V to 10.0V Output Voltage Range
Up to 5.0A Cycle-by-Cycle Inductor Current Limit
95% Peak Efficiency
I²C Serial Interface Enabling:
- Dynamic Voltage Scaling (DVS)
- Mode Configuration
- Current Limit Adjustment
Ultrasonic Mode (USM with f_SW > 25kHz) to Alleviate Acoustic Audible Interference for Light Load Operation
2MHz Switching Frequency

Forced PWM (FPWM) Operation
True Shutdown Mode
- Output Disconnects from Input with no Forward or Reverse Current
Output Short Circuit Protection
Overcurrent Protection
Overvoltage Protection
Thermal Shutdown Protection
Package:
- 1.89mm x 1.46mm, 0.35mm Pitch 20-Bump WLP
-40°C to +125°C Operating Temperature Range

Part details & applications

The MAX77371 is an ultrasonic, high-performance boost converter with an input voltage range from 2.5V to 5.5V and a configurable switching current limit of up to 5.0A. The IC operates in Ultrasonic mode (f_SW > 25kHz) at low loads and transitions into Skip and CCM modes of operation at higher load currents. When selected, the device can operate in forced PWM mode.

The output voltage can be widely varied between 4.5V and 10.0V.

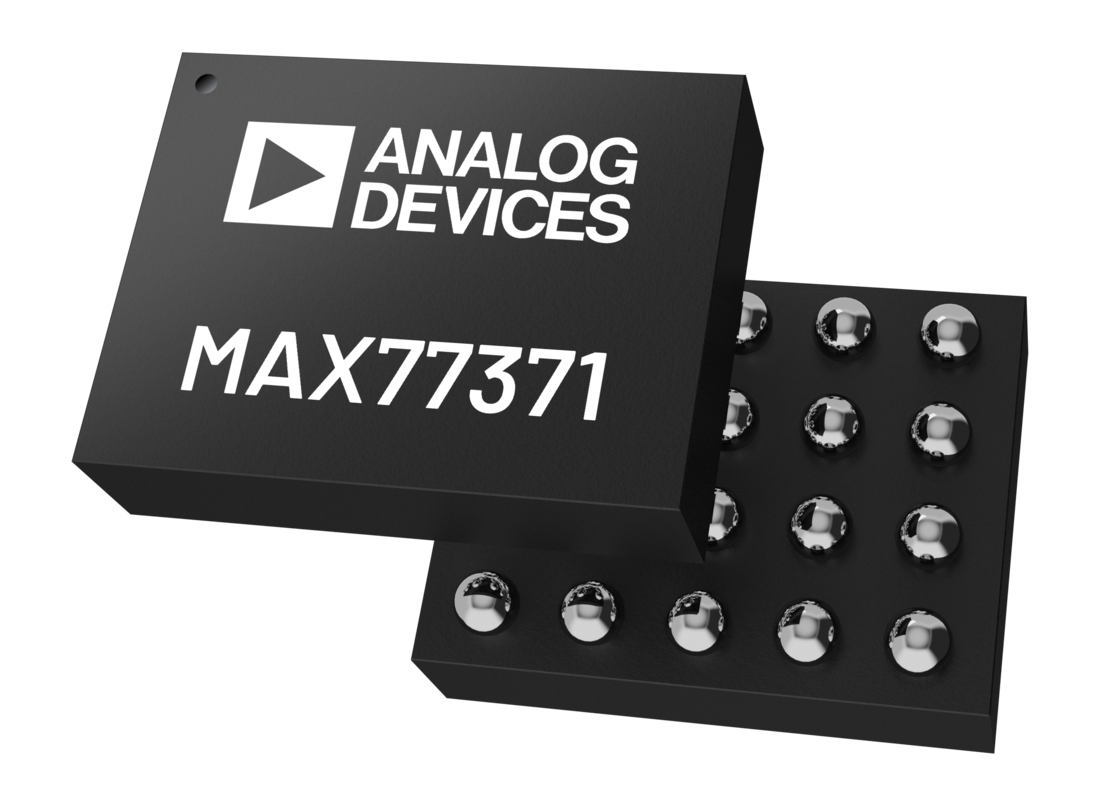

The MAX77371 features a true shutdown mode that disconnects V_IN and V_OUT when the EN pin is pulled low. It also implements short circuit, overcurrent, voltage, and temperature protection features. The MAX77371 is available in a 20-bump, 0.35mm pitch wafer-level package (WLP).

APPLICATIONS

AR/VR Laser Driver Bias
Wireless Charging Circuit Bias
