LTM8068

RECOMMENDED FOR NEW DESIGNS

3VIN to 40VIN Isolated μModule DC/DC Converter with LDO Post Regulator

Analog Devices LTM8068 Product Info

10 February 2026 7

Features

2kVAC Isolated μModule Converter
UL60950 Recognized File E464570
Wide Input Voltage Range: 3V to 40V
V_OUT1 Output:
- Up to 450mA (V_IN = 24V, V_OUT1 = 5V)
- 2.5V to 18V Output Range

V_OUT2 Low Noise Linear Post Regulator:
- Up to 300mA
- 1.2V to 18V Output Range
Current Mode Control
Programmable Soft-Start
User Configurable Undervoltage Lockout
Low Profile (9mm × 11.25mm × 4.92mm) BGA Package

Part details & applications

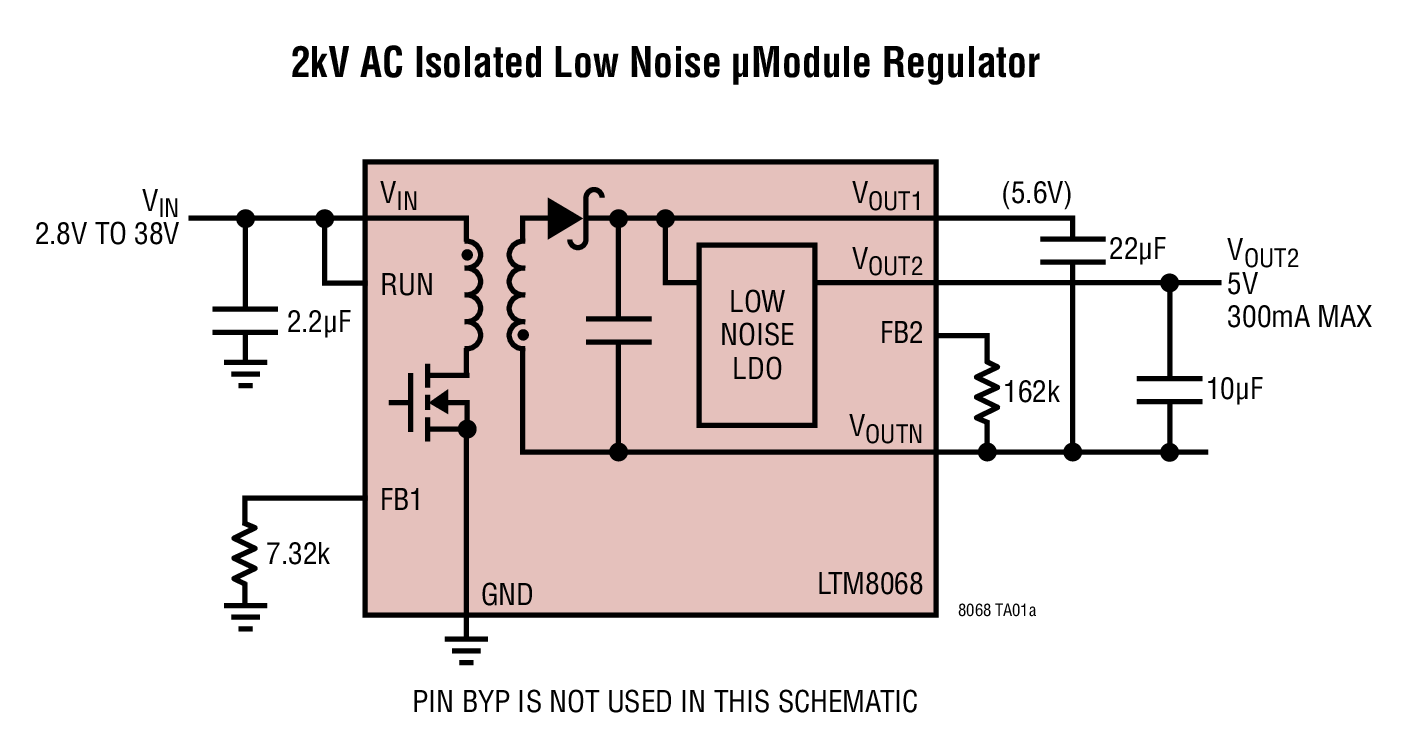

The LTM8068 is a 2kV AC isolated flyback μModule^® (power module) DC/DC converter with LDO post regulator. Included in the package are the switching controller, power switches, transformer, LDO, and all support components. Operating over an input voltage range of 2.8V to 40V, the LTM8068 supports an output voltage range of 2.5V to 18V, set by a single resistor. There is also a linear post regulator whose output voltage is adjustable from 1.2V to 18V as set by a single resistor. Only output and input capacitors are needed to finish the design.

The LTM8068 is packaged in a thermally enhanced, compact (9mm × 11.25mm × 4.92mm) overmolded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8068 is available with SnPb or RoHS compliant terminal finish.

Applications

Industrial Sensors
Industrial Switches
Ground Loop Mitigation
