MAX74840

RECOMMENDED FOR NEW DESIGNS

30V, Single Supply, Low Bias Current, RRO, 8MHz JFET Op Amp

Analog Devices MAX74840 Product Info

10 February 2026 6

Features

Wide gain bandwidth product: 8MHz typical
High slew rate
- 23V/μs typical (low to high)
- −18V/μs typical (high to low)
Low input bias current: ±15pA maximum at T_A = 25°C
Low offset voltage: ±10mV maximum at T_A = 25°C

Low offset voltage drift: ±4μV/°C typical
Input voltage range includes Pin V-
Rail-to-rail output
Electromagnetic interference rejection ratio (EMIRR)
90dB typical at f = 1000MHz and f = 2400MHz

Part details & applications

The MAX74840 is a single-supply, rail-to-rail output (RRO), junction field effect transistors (JFET) input operational amplifiers (Op Amps).

The input voltage range includes the negative supply and the output swings rail-to-rail. This enables the user to maximize dynamic input range in low voltage, single supply applications without the need for a separate negative voltage power supply for ground sense.

Input EMI filters increase the signal robustness in the face of closely located switching noise sources.

The speed, in terms of bandwidth and slew rate, increases along with a strong output drive to improve settling time performance and enables the devices to drive the inputs of modern single-ended, successive approximation register (SAR) analog-to-digital converters (ADCs).

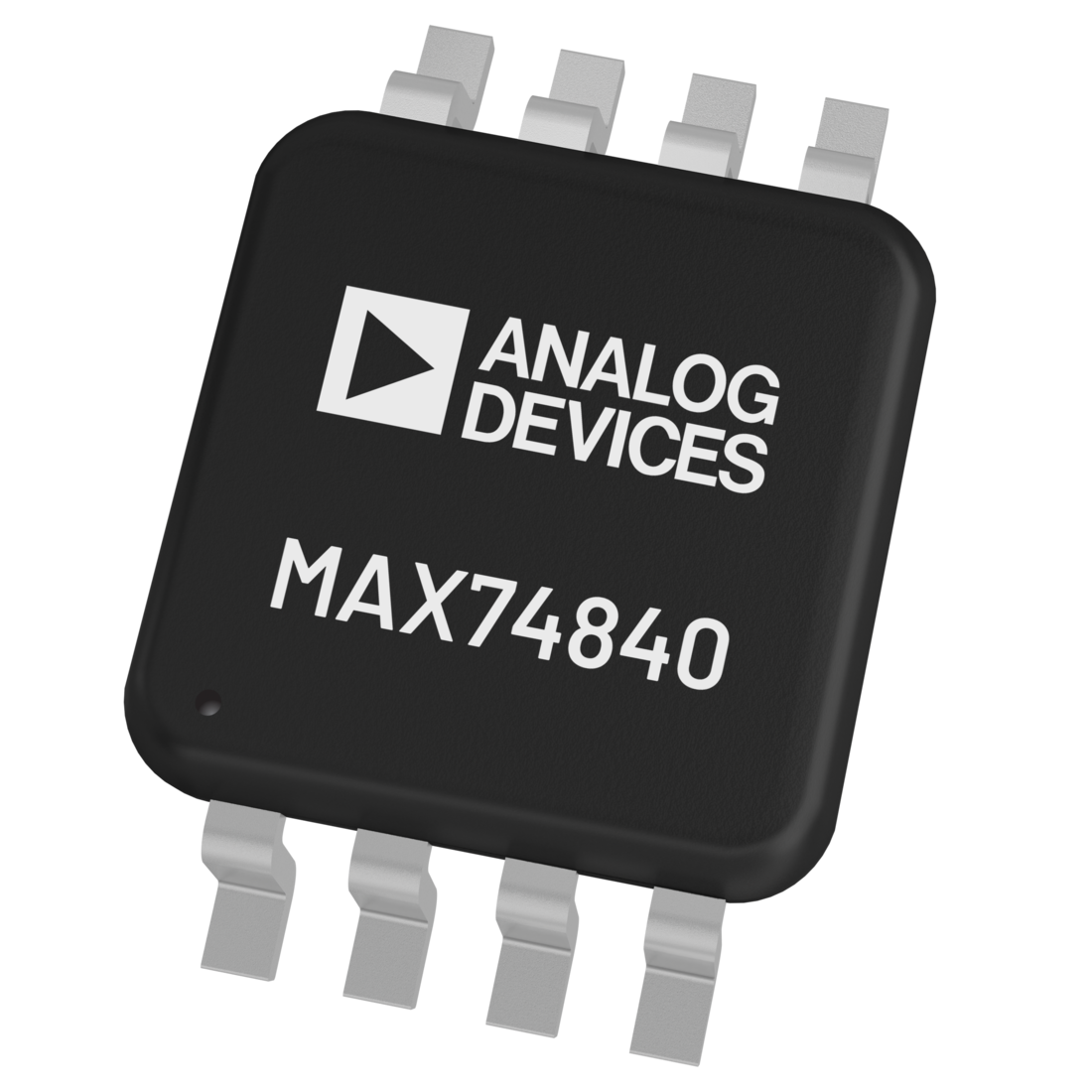

The MAX74840 is specified for operation over the extended industrial temperature range of −40°C to +125°C, and operate from 5V to 30V, with specifications at ±15V. The MAX74840 is available in an 8-lead MSOP package.

APPLICATIONS

High output impedance sensor interfaces
Photodiode sensor interfaces
Transimpedance amplifiers
ADC drivers
Precision filters and signal conditioning
