Analog Devices MAX6515 Product Info

• High-Accuracy ±1.5°C (max) over +35°C to +65°C Temperature Range
• Low-Power Consumption: 22µA Typical Current
• Factory-Programmed Thresholds from +35°C to +115°C in 10°C Increments
• Open-Drain or Push-Pull Outputs
• Pin-Selectable 2°C or 10°C Hysteresis

The MAX6514/MAX6515 low-cost, fully integrated temperature switches assert a logic signal when their die temperature crosses a factory-programmed threshold. Operating from a 2.7V to 5.5V supply, these devices feature a fixed voltage reference, an analog temperature sensor, and a comparator. They are available with factory-trimmed temperature trip thresholds from +35°C to +115°C in 10°C increments, and are accurate to ±1°C (typ). These devices require no external components and typically consume 22µA of supply current. Hysteresis is pin selectable at 2°C or 10°C.

The MAX6514/MAX6515 are offered with temperature thresholds (+35°C to +115°C), asserting when the temperature is above the threshold. The MAX6514/MAX6515 can be used over a -55°C to +125°C range with a supply voltage of 2.7V to 5.5V.

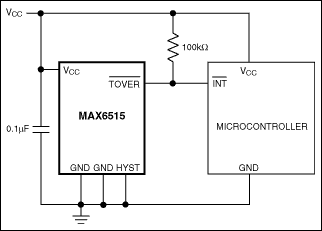

The MAX6514 has an active-high, push-pull output. The MAX6515 has an active-low, open-drain output. These devices are available in a space-saving 5-pin SOT23 package.

Applications

• Fan Control
• Notebook, Desktop PCs
• Over/Undertemperature Protection
• RAID
• Servers
• Temperature Alarms
• Temperature Control
• Test Equipment
