Analog Devices MAX539 Product Info

• Operate from Single +5V Supply
• Buffered Voltage Output
• Internal 2.048V Reference (MAX531)
• 140µA Supply Current (MAX538/MAX539)
• INL = ±1/2LSB (max)
• Guaranteed Monotonic over Temperature
• Flexible Output Ranges:
  • 0V to VDD (MAX531/MAX539)
  • VSS to VDD (MAX531)
  • 0V to 2.6V (MAX531/MAX538)
• 8-Pin SO/DIP (MAX538/MAX539)
• Power-On Reset
• Serial Data Output for Daisy-Chaining

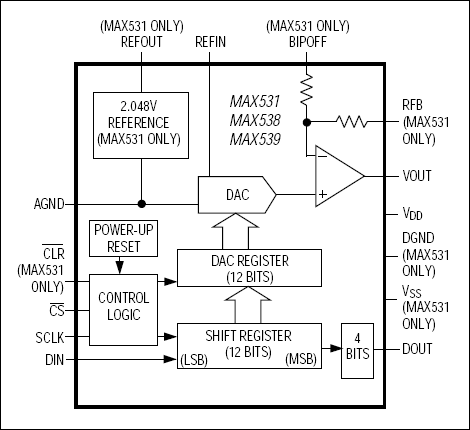

The MAX531/MAX538/MAX539 are low-power, voltage- output, 12-bit digital-to-analog converters (DACs) specified for single +5V power-supply operation. The MAX531 can also be operated with ±5V supplies. The MAX538/MAX539 draw only 140µA, and the MAX531 (with internal reference) draws only 260µA. The MAX538/MAX539 come in 8-pin DIP and SO packages, while the MAX531 comes in 14-pin DIP and SO packages. All parts have been trimmed for offset voltage, gain, and linearity, so no further adjustment is necessary.

The MAX538's buffer is fixed at a gain of +1 and the MAX539's buffer at a gain of +2. The MAX531's internal op amp may be configured for a gain of +1 or +2, as well as for unipolar or bipolar output voltages. The MAX531 can also be used as a four-quadrant multiplier without external resistors or op amps. For parallel data inputs, see the MAX530 data sheet.

Applications

• Battery-Operated/Remote Industrial Controls
• Battery-Powered Test Instruments
• Digital Gain and Offset Control
• General Purpose
• Machine- and Motion-Control Devices
