Analog Devices MAX533 Product Info

• +2.7V to +3.6V Single-Supply Operation
• Ultra-Low Supply Current:
  • 0.7mA while Operating
  • 1µA in Shutdown Mode
• Ultra-Small 16-Pin QSOP Package
• Ground to V_DD Reference Input Range
• Output Buffer Amplifiers Swing Rail to Rail
• 10MHz Serial Interface, Compatible with SPI, QSPI
  • (CPOL = CPHA = 0 or CPOL = CPHA = 1), and Microwire
• Double-Buffered Registers for Synchronous Updating
• Serial Data Output for Daisy Chaining
• Power-On Reset Clears Serial Interface and Sets All Registers to Zero
• Software Shutdown
• Software-Programmable Logic Output
• Asynchronous Hardware Clear Resets All Internal Registers to Zero

The MAX533 serial-input, voltage-output, 8-bit quad digital-to-analog converter (DAC) operates from a sin-gle +2.7V to +3.6V supply. Internal precision buffers swing rail to rail, and the reference input range includes both ground and the positive rail. The MAX533 features a 1µA shutdown mode.

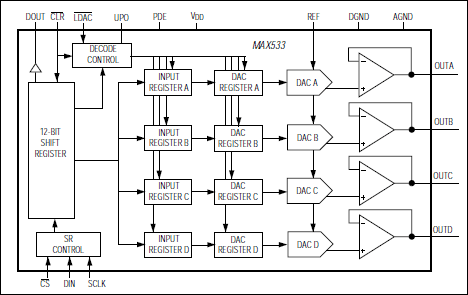

The serial interface is double buffered: a 12-bit input shift register is followed by four 8-bit buffer registers and four 8-bit DAC registers. The 12-bit serial word consists of eight data bits and four control bits (for DAC selection and special programming commands). Both the input and DAC registers can be updated indepen-dently or simultaneously with a single software com-mand. Two additional asynchronous control pins, active-low LDAC and active-low CLR, provide simultaneous updating or clearing of the input and DAC registers.

The interface is compatible with SPI™, QSPI™ (CPOL = CPHA = 0 or CPOL = CPHA = 1), and Microwire™. A buffered data output allows daisy chaining of serial devices.

In addition to 16-pin DIP and CERDIP packages, the MAX533 is available in a 16-pin QSOP that occupies the same area as an 8-pin SO.

Applications

• Digital Gain and Offset Control
• Portable Instrumentation
• Programmable Attenuators
• Programmable Current Sources
