Analog Devices MAX5187 Product Info

• +2.7V to +3.3V Single-Supply Operation
• Wide Spurious-Free Dynamic Range: 70dB at f_OUT = 2.2MHz
• Fully Differential Output
• Low-Current Standby or Full Shutdown Modes
• Internal +1.2V Low-Noise Bandgap Reference
• Small 24-Pin QSOP Package

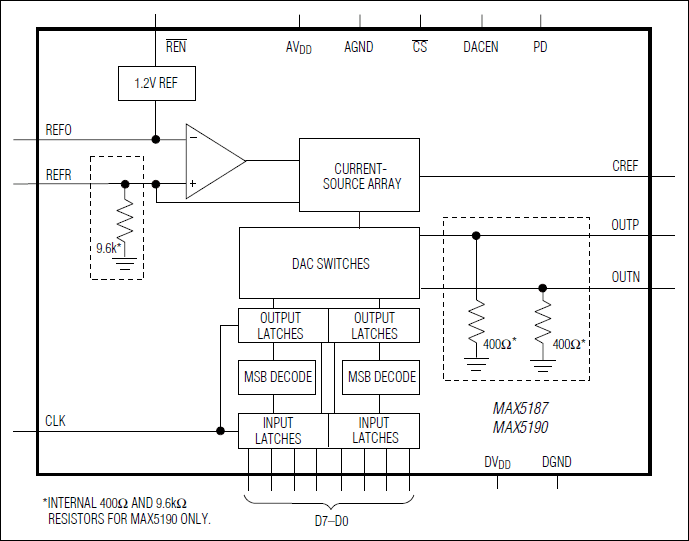

The MAX5187 is an 8-bit, current-output digital-to-analog converter (DAC) designed for superior performance in signal reconstruction or arbitrary waveform generation applications requiring analog signal reconstruction with low distortion and low-power operation. The voltage-output MAX5190 provides equal specifications, with on-chip precision resistors for voltage output operation. Both devices are designed for a 10pV-s glitch operation to minimize unwanted spurious signal components at the output. An on-board +1.2V bandgap circuit provides a well-regulated, low-noise reference that can be disabled for external reference operation.

The MAX5187/MAX5190 are designed to provide a high level of signal integrity for the least amount of power dissipation. They operate from a single supply of +2.7V to +3.3V. Additionally, these DACs have three modes of operation: normal, low-power standby, and full shutdown, which provides the lowest possible power dissipation with a 1µA (max) shutdown current. A fast wake-up time (0.5µs) from standby mode to full DAC operation allows for power conservation by activating the DAC only when required.

The MAX5187/MAX5190 are packaged in a 24-pin QSOP and are specified for the extended (-40°C to +85°C) temperature range. For higher resolution, 10-bit versions, see the MAX5181/MAX5184 data sheet.

Applications

• Arbitrary Waveform Generation (AWG)
• Digital Signal Processing (DSP)
• Imaging
• Signal Reconstruction
