Analog Devices MAX5155 Product Info

• 12-Bit Dual DAC with Internal Gain of +2V/V
• Rail-to-Rail Output Swing
• 12µs Settling Time
• Single-Supply Operation:
  • +5V (MAX5154)
  • +3V (MAX5155)
• Low Quiescent Current:
  • 500µA (normal operation)
  • 2µA (shutdown mode)
• SPI/QSPI and Microwire Compatible
• Available in Space-Saving 16-Pin QSOP Package
• Power-On Reset Clears Registers and DACs to Zero
• Adjustable Output Offset

The MAX5154/MAX5155 low-power, serial, voltage-output, dual 12-bit digital-to-analog converters (DACs) consume only 500µA from a single +5V (MAX5154) or +3V (MAX5155) supply. These devices feature Rail-to-Rail output swing and are available in a space-saving 16-pin QSOP package. To maximize the dynamic range, the DAC output amplifiers are configured with an internal gain of +2V/V.

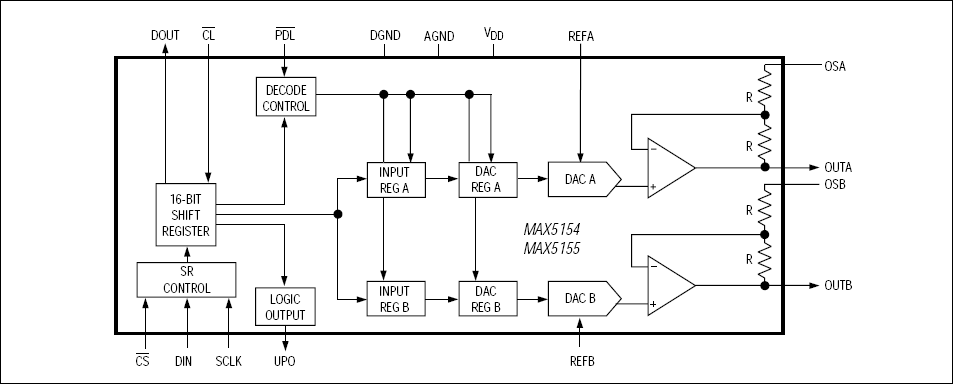

The 3-wire serial interface is SPI™/QSPI™ and Microwire™ compatible. Each DAC has a double-buffered input organized as an input register followed by a DAC register, which allows the input and DAC registers to be updated independently or simultaneously with a 16-bit serial word. Additional features include programmable shutdown (2µA), hardware-shutdown lockout (PDL), a separate reference voltage input for each DAC that accepts AC and DC signals, and an active-low clear input (CL) that resets all registers and DACs to zero. These devices provide a programmable logic pin for added functionality, and a serial-data output pin for daisy chaining.

Applications

• Digital Gain and Offset Control
• General Purpose
• Industrial Process Controls
• Microprocessor-Controlled Systems
• Motion Control
• Remote Industrial Controls
