MAX5102

PRODUCTION

+2.7V to +5.5V, Low-Power, Dual, Parallel 8-Bit DAC with Rail-to-Rail Voltage Outputs Lowest-Power, Dual, Parallel 8-Bit DAC

Analog Devices MAX5102 Product Info

10 February 2026 7

Features

+2.7V to +5.5V Single-Supply Operation
Ultra-Low Supply Current
- 0.2mA while Operating
- 1nA in Shutdown Mode
Ultra-Small 16-Pin TSSOP Package
Ground to V_DD Reference Input Range
Output Buffer Amplifiers Swing Rail-to-Rail
Power-On Reset Sets All Registers to Zero

Part details & applications

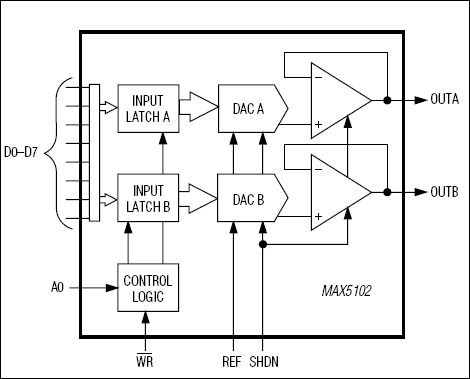

The MAX5102 parallel-input, voltage-output, dual 8-bit digital-to-analog converter (DAC) operates from a single +2.7V to +5.5V supply and comes in a space-saving 16-pin TSSOP package. Internal precision buffers swing rail-to-rail, and the reference input range includes both ground and the positive rail. Both DACs share a common reference input. The MAX5102 has separate input latches for each of its DACs. Data is transferred to the input latches from a common 8-bit input port. The DACs are individually selected through address input A0 and are updated by bringing active-low WR low. The MAX5102 features a shutdown mode that reduces current to 1nA, as well as a power-on reset mode that resets all registers to code 00 hex on power-up.

Applications

Digital Gain and Offset Control
Portable Instrumentation
Power-Amp Bias Control
Programmable Attenuators
