ADXL335

PRODUCTION

Small, Low Power, 3-Axis ±3 g Accelerometer

Analog Devices ADXL335 Product Info

10 February 2026 5

Features

Small, low-profile package
4 mm × 4 mm × 1.45 mm LFCSP
Low power - 350 μA (typical)
Single-supply operation
1.8 V to 3.6 V

3-axis sensing
10,000 g shock survival
Excellent temperature stability
BW adjustment with a single capacitor per axis
RoHS/WEEE lead-free compliant

Part details & applications

The ADXL335 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tiltsensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.

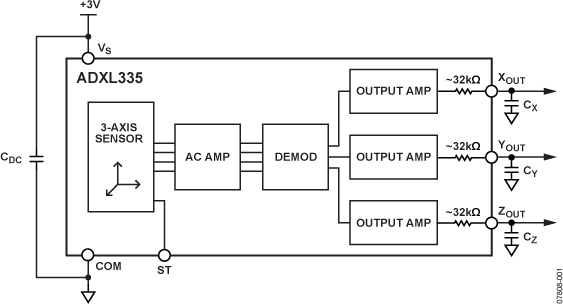

The user selects the bandwidth of the accelerometer using the C_X, C_Y, and C_Z capacitors at the X_OUT, Y_OUT, and Z_OUT pins. Bandwidths can be selected to suit the application, with a range of 0.5 Hz to 1600 Hz for X and Y axes, and a range of 0.5 Hz to 550 Hz for the Z axis.

The ADXL335 is available in a small, low profile, 4 mm × 4 mm × 1.45 mm, 16-lead, plastic lead frame chip scale package (LFCSP_LQ).

APPLICATIONS

Cost sensitive, low power, motion- and tilt-sensing applications
Mobile devices
Gaming systems
Disk drive protection
Image stabilization
Sports and health devices
