Analog Devices MAX4996 Product Info

• Multiplex SD2.0/SDIO Interfaces
• Low Power Consumption (2µA max)
• +2.5V to +5.5V Supply Voltage Range
• Rail-to-Rail Signal Handling
• Low-Capacitance Switches, 6pF (typ)
• Low On-Resistance, 2Ω (typ)
• Excellent On-Resistance Flatness Over the Range of 0V to V_CC
• Wide -3dB Bandwidth, 670MHz
• Small 24-Pin TQFN (3.5mm x 3.5mm)

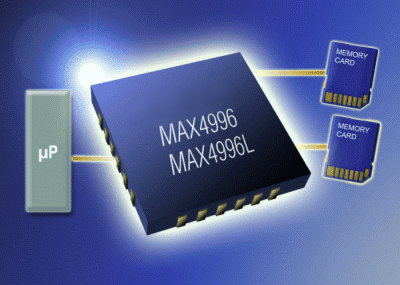

The MAX4996/MAX4996L triple DPDT analog switches operate from a single +2.5V to +5.5V supply, and feature 2.0Ω (typ) on resistance, low 6pF (typ) on-capacitance, and low power-supply current consumption. The MAX4996/MAX4996L combine the low capacitance and low resistance necessary for high-frequency switching applications in portable electronics.

The MAX4996/MAX4996L have three logic inputs to control the switches in pairs. The MAX4996 has an active-high enable input (EN) to disable the switches, while the MAX4996L has an active-low enable input (active-low EN) to disable the switches. The enable input decreases the supply current and also places the COM_ outputs in a high-impedance state.

The MAX4996/MAX4996L feature a 5µA (max) supply-current consumption when the logic inputs are not rail-to-rail. This feature is especially valuable in applications where direct interface to low-voltage processors is necessary.

The MAX4996/MAX4996L are available in a space-saving 24-pin (3.5mm x 3.5mm) TQFN package and operate over the -40°C to +85°C temperature range.

Applications

• Cell Phones
• GPS
• PDAs
• Personal Media Players (PMP)
• SD Card Switching
• UART Signal Switching
• USB Signal Switching
