Analog Devices MAX4885E Product Info

• ±15kV HBM ESD Protection on Externally Routed Terminals
• 1GHz Bandwidth
• Low 5Ω (typ) On-Resistance (R, G, B Signals)
• Low 6pF (typ) On-Capacitance (R, G, B Signals)
• Low R, G, B Skew -50ps (typ)
• Near Zero Power Consumption (< 2µA)
• Ultra-Small, 24-Pin (4mm x 4mm) TQFN Package

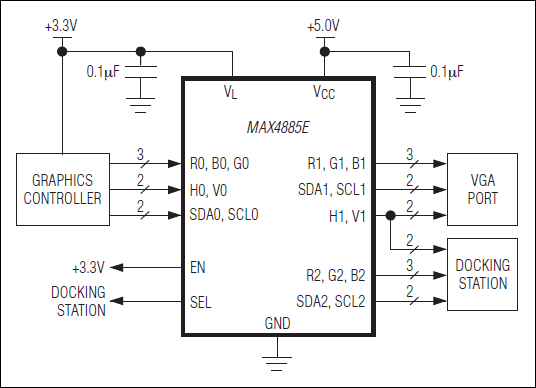

The MAX4885E integrates high-bandwidth analog switches and level-translating buffers to implement a complete 1:2 multiplexer for VGA signals. The device provides switching for RGB, display data channel (DDC).

Horizontal and vertical synchronization (HSYNC/VSYNC) inputs feature level-shifting buffers to support low-voltage CMOS or standard TTL-compatible graphics controllers, meeting the VESA requirement of ±8mA. DDC, consisting of SDA_ and SCL_, is a bidirectional active-level translating switch that reduces capacitive load. The MAX4885E features high ESD protection to ±15kV Human Body Model (HBM) on all twelve externally routed terminals. See the Pin Description section in the full data sheet. All other pins are protected to ±10kV Human Body Model (HBM).

The MAX4885E is specified over the extended -40°C to +85°C temperature range, and is available in the 24-pin, 4mm x 4mm TQFN package.

Applications

• Computer Monitors
• Digital Projectors
• KVM Switches
• Notebook Computers/Docking Stations
• Servers/Storage
