LTC3703-5

PRODUCTION

60V Synchronous Switching Regulator Controller

Analog Devices LTC3703-5 Product Info

10 February 2026 6

Features

High Voltage Operation: Up to 60V
Large 1Ω Gate Drivers (with 5V Supply)
No Current Sense Resistor Required
Step-Up or Step-Down DC/DC Converter
Dual N-Channel MOSFET Synchronous Drive
Excellent Line and Load Transient Response
Programmable Constant Frequency: 100kHz to 600kHz
±1% Reference Accuracy

Synchronizable up to 600kHz
Selectable Pulse Skip Mode Operation
Low Shutdown Current: 25µA Typ
Programmable Current Limit
Undervoltage Lockout
Programmable Soft-Start

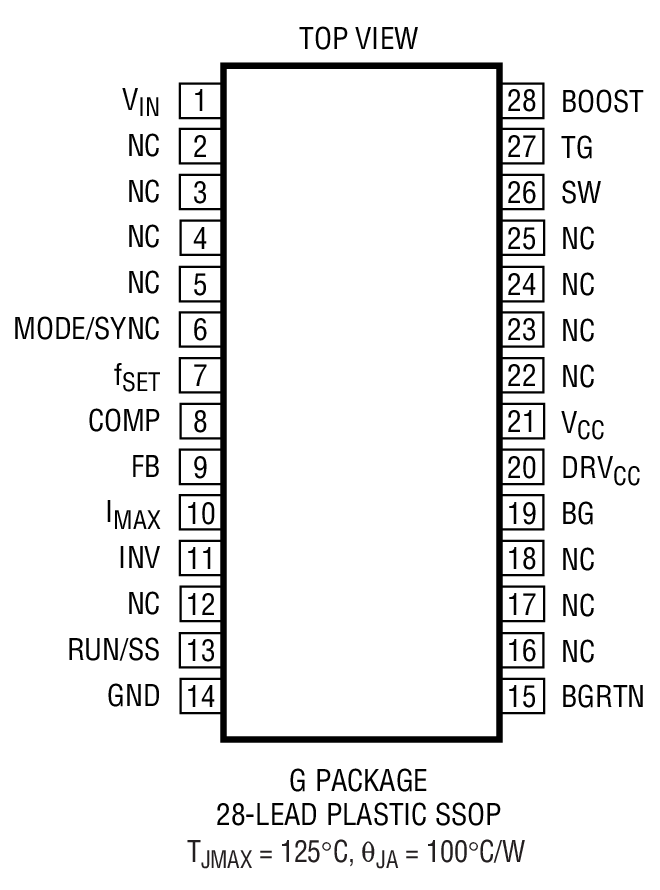

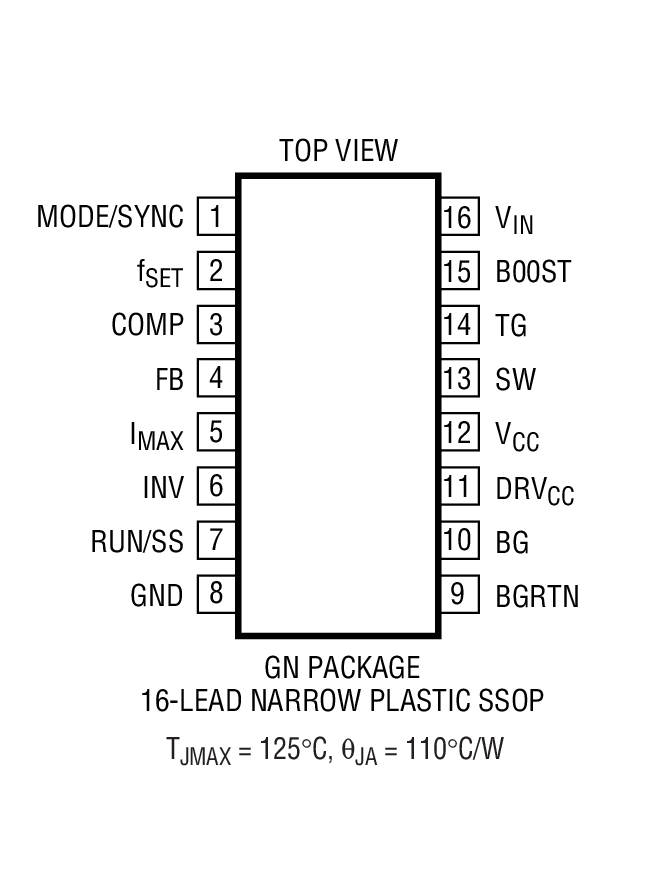

16-Pin Narrow SSOP and 28-Pin SSOP Packages

Part details & applications

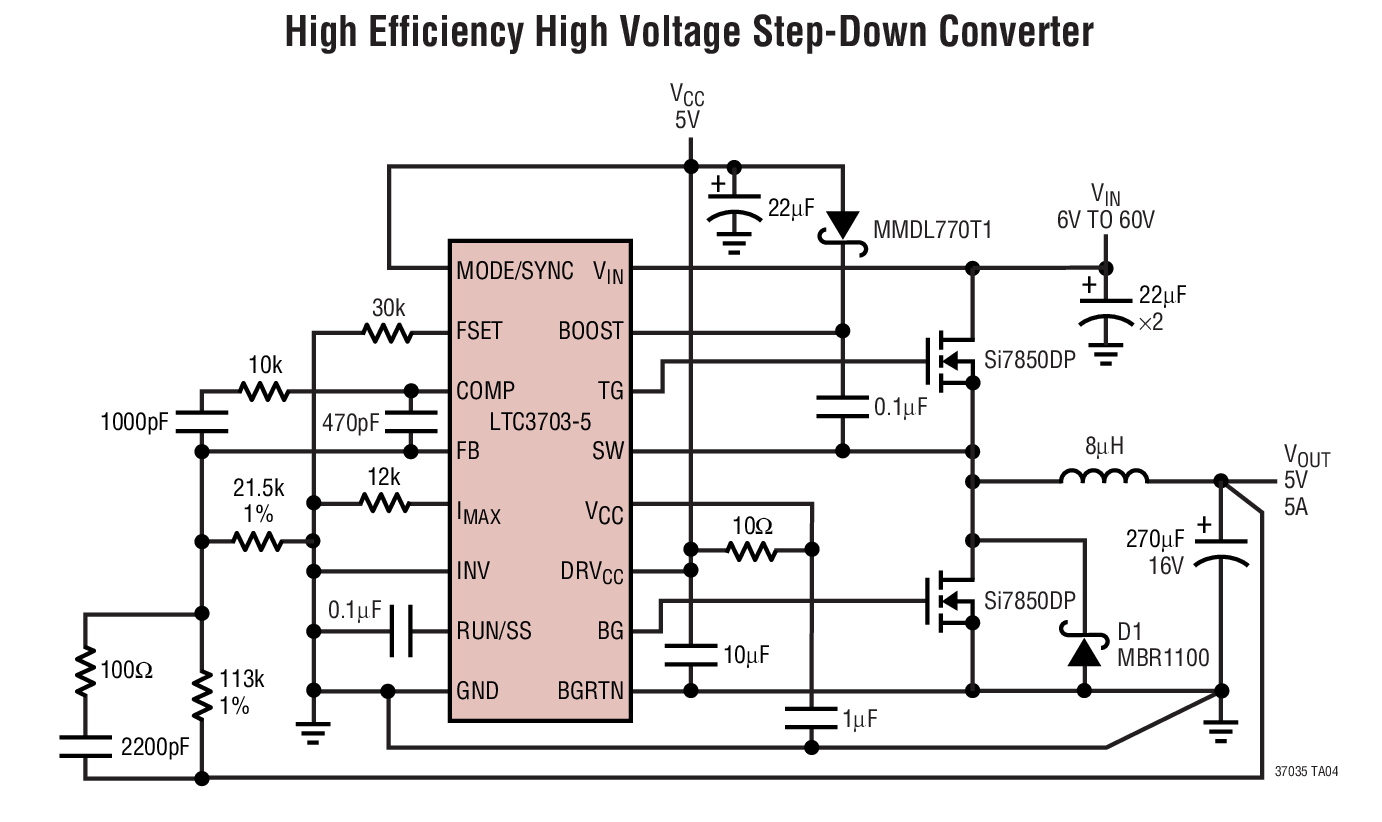

The LTC3703-5 is a synchronous step-down switching regulator controller that can directly step-down voltages from up to 60V, making it ideal for telecom and automotive applications. The LTC3703-5 drives external logic level N-channel MOSFETs using a constant frequency (up to 600kHz), voltage mode architecture.

A precise internal reference provides 1% DC accuracy. A high bandwidth error amplifier and patented* line feed forward compensation provide very fast line and load transient response. Strong 1Ω gate drivers allow the LTC3703-5 to drive multiple MOSFETs for higher current applications. The operating frequency is user programmable from 100kHz to 600kHz and can also be synchronized to an external clock for noise-sensitive applications. Current limit is programmable with an external resistor and utilizes the voltage drop across the synchronous MOSFET to eliminate the need for a current sense resistor. For applications requiring up to 100V operation, refer to the LTC3703 data sheet.
