Analog Devices MAX4561 Product Info

• ESD-Protected NO, NC
  • ±15kV—Human Body Model
  • ±15kV—IEC 1000-4-2, Air-Gap Discharge
  • ±8kV—IEC 1000-4-2, Contact Discharge
• Guaranteed On-Resistance
  • 70Ω +5V Supply
  • 120Ω with Single +3V Supply
• On-Resistance Match Between Channels (2Ω max)
• Low On-Resistance Flatness: 4Ω max
• Guaranteed Low Leakage Currents
  • 0.5nA Off-Leakage (at T_A = +25°C)
  • 0.5nA On-Leakage (at T_A = +25°C)
• Guaranteed Break-Before-Make at 5ns (MAX4561 only)
• Rail-to-Rail Signal Handling Capability
• TTL/CMOS-Logic Compatible with +5V Supplies
• Industry Standard Pin-Outs
  • MAX4561 Pin Compatible with MAX4544
  • MAX4568/MAX4569 Pin Compatible with MAX4514/MAX4515

The MAX4561/MAX4568/MAX4569 are low-voltage, ESD-protected analog switches. The normally open (NO) and normally closed (NC) inputs are protected against ±15kV electrostatic discharge (ESD) without latchup or damage, and the COM input is protected against 2.5kV ESD.

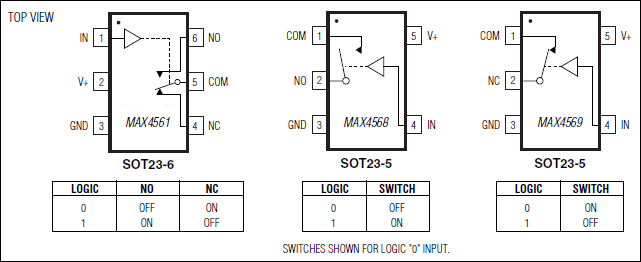

These switches operate from a single +1.8V to +12V supply. The 70Ω at 5V (120Ω at 3V) on-resistance is matched between channels to 2Ω max, and is flat (4Ω max) over the specified signal range. The switches can handle rail-to-rail analog signals. Off-leakage current is only 0.5nA at +25°C and 5nA at +85°C. The digital input has +0.8V to +2.4V logic thresholds, ensuring TTL/CMOS-logic compatibility when using a single +5V supply. The MAX4561 is a single-pole/double-throw (SPDT) switch. The MAX4568 NO and MAX4569 NC are single-pole/single-throw (SPST) switches.

The MAX4561 is available in a 6-pin SOT23 package, and the MAX4568/MAX4569 are available in 5-pin SOT23 packages.

Applications

• Protection Circuits
• Switches and Multiplexers
