MAX4516

PRODUCTION

Dual-Supply, Low On-Resistance, SPST, CMOS Analog Switches

Analog Devices MAX4516 Product Info

10 February 2026 7

Features

Available in SOT23-5 Package
±1V to ±6V Dual-Supply Operation
Guaranteed On-Resistance: 20Ω with ±5V Supplies
Guaranteed Low Off-Leakage Currents:
- 1nA at +25°C
- 20nA at +85°C
Guaranteed Low On-Leakage Currents:
- 2nA at +25°C
- 40nA at +85°C
Low Charge Injection: 20pC Max
Fast Switching Speed: t_ON = 100ns, t_OFF = 75ns
t_ON > t_OFF at ±5V
CMOS Logic Compatible with ±5V Supplies

Part details & applications

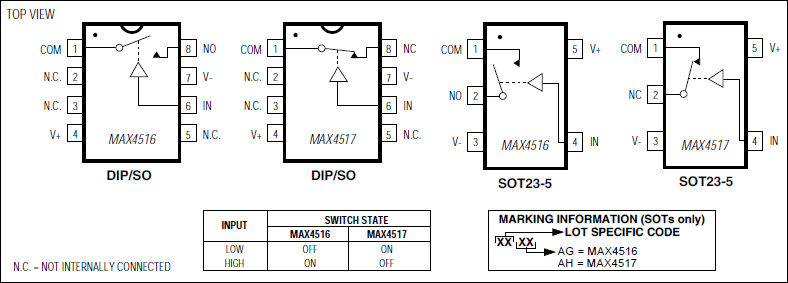

The MAX4516/MAX4517 are single-pole/single-throw (SPST), CMOS, low-voltage, dual-supply analog switches with very low switch on-resistance. The MAX4516 is normally open (NO). The MAX4517 is normally closed (NC).

These CMOS switches can operate continuously with dual supplies between ±1V and ±6V. Each switch can handle rail-to-rail analog signals. The off-leakage current maximum is only 1nA at +25°C or 20nA at +85°C.

The digital input is referenced to the positive power supply and is CMOS compatible.

For pin-compatible parts for use with a single supply, refer to the MAX4514/MAX415.

Applications

Audio/Video Signal Routing
Battery-Powered Applications
Cell Phones
Communication Systems
Low-Voltage Data Acquisition
Modems
PCMCIA Cards
