Analog Devices AD5663 Product Info

• Low power, dual 16-bit nanoDAC
• Relative accuracy: ±12 LSBs maximum
• Guaranteed monotonic by design

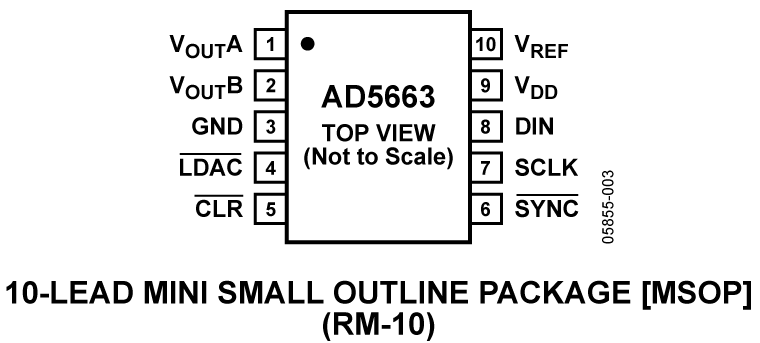

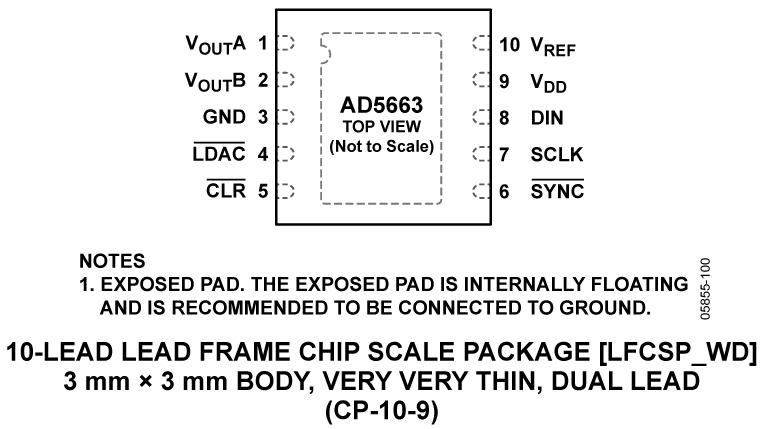

• 10-lead MSOP and 3 mm × 3 mm LFCSP_WD
• 2.7 V to 5.5 V power supply
• Per channel power-down
• Power-on reset to zero scale or midscale
• Hardware LDAC and CLR functions
• Serial interface; up to 50 MHz

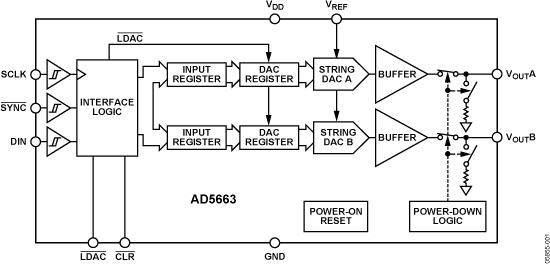

The AD5663, a member of the nanoDAC^® family, is a low power, dual, 16-bit buffered voltage-out DAC that operates from a single 2.7 V to 5.5 V supply and is guaranteed monotonic by design.

The AD5663 requires an external reference voltage to set the output range of the DAC. The part incorporates a power-on reset circuit that ensures the DAC output powers up to 0 V or midscale (AD5663BRMZ-1) and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480 nA at 5 V and provides software-selectable output loads while in power-down mode.

The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment. The power consumption is 1.25 mW at 5 V, going down to 2.4 μW in power-down mode.

The on-chip precision output amplifier of the AD5663 allows rail-to-rail output swing to be achieved.

The AD5663 uses a versatile, 3-wire serial interface that operates at clock rates up to 50 MHz and is compatible with standard SPI^®, QSPI^™, MICROWIRE^™, and DSP interface standards.

Product Highlights

1. Dual 16-bit DAC; relative accuracy of ±12 LSBs maximum.
2. Available in 10-lead MSOP and 10-lead, 3 mm × 3 mm LFCSP_WD packages.
3. Low power; typically consumes 0.6 mW at 3 V and 1.25 mW at 5 V.
4. 7 μs maximum settling time.

Applications

• Process control
• Data acquisition systems
• Portable battery-powered instruments
• Digital gain and offset adjustment
• Programmable voltage and current sources
• Programmable attenuators
