Analog Devices MAX3370 Product Info

• Allow Bidirectional Level Translation
• Miniature µDFN (1mm x 1.5mm) and SC70 Packages
• Operational Down to 1.6V
• Low Quiescent Current (< 100µA)
• Ultra-Low (< 1µA) Shutdown Supply Current (MAX3371)
• Three-State Outputs in Shutdown (MAX3371)
• 2Mbps (10pF Load) Push-Pull Driving
• 1Mbps (50pF Load) Push-Pull Driving
• 500kbps (30pF Load) Open-Drain Driving

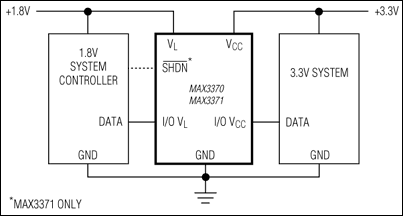

The MAX3370/MAX3371 logic-level translators are ideal for applications interfacing low-voltage devices to other logic levels. Externally applied voltages set the logic levels of the MAX3370/MAX3371. The devices accept V_CC from +2.5V to +5.5V and V_L from +1.6V to +5.5V, allowing data transfer between low-voltage ASICs and higher voltage devices. The MAX3371 features a shutdown mode that reduces supply current to < 1µA and puts the I/O pins in a high-impedance state.

The MAX3370/MAX3371 are bidirectional level shifters, allowing data transfer from the V_CC side to the V_L side and from the V_L side to the V_CC side. Both devices operate at speeds up to 2Mbps with an active driver and up to 500kbps with an open-drain driver.

The MAX3370/MAX3371 are available in space-saving µDFN (1mm x 1.5mm) and SC70 packages.

Applications

• Cell Phone Cradles
• Cell Phone Hands-Free Kits
• Low-Voltage ASIC Level Translation
• Portable Communication Devices
• Portable POS Systems
• RS-232-Compatible Translation
• Smart Card Readers
• SPI™, MICROWIRE™, and I²C Level Translation
