Analog Devices MAX32600 Product Info

• Integrated AFE Enables Precision Wellness Measurements with Minimal Discretes
  • 16-Bit ADC with Input Mux and PGA
    • Up to 500ksps Conversion Rate
    • PGA with Gain of 1, 2, 4, and 8 and Bypass Mode
    • Differential 8:1 or Single-Ended 16:1 Input Mux
    • Internal Mux Inputs for Measuring V_DDA3
  • Internal or External Voltage Reference
    • Programmable Buffers for ADC and DACs
  • Two 12-Bit DACs and Two 8-Bit DACs
  • Four Operational Amplifiers
  • Four Low-Power Comparators
  • Four Uncommitted SPST Analog Switches
  • Four Ground Switches
  • Up to Eight 100mA LED Driver Pairs (Sink)
  • Internal Temperature Sensor
• Secure Valuable IP and Data with Robust On-Board Trust Protection Unit
  • Trust Protection Unit for End-to-End Security
  • AES Hardware Engine
  • µMAA for ECDSA and RSA
  • True Random Number Generator (TRNG)
  • Fast-Erase SRAM for Secure Key Storage
• Industry’s Lowest Overall System Power Increases Battery Life
  • 175µA/MHz Active Power Executing Code from Cache
  • 1.25µA Current Consumption with Real-Time Clock Enable in LP0
  • 1.8µA Current Consumption with Data Retention and Fast 15µs Wakeup in LP1
  • Peripheral Clock Control
  • 6-Channel DMA Engine Enables Intelligent Peripheral Operation While Micro is in Sleep Mode
• Flexible Package Options
  • 120-Ball CTBGA, 0.5mm Pitch, 7mm x 7mm
  • 192-Ball CTBGA, 0.65mm Pitch, 12mm x 12mm
  • 108-Bump WLP, 0.4mm Pitch, 5.4mm x 4.3mm

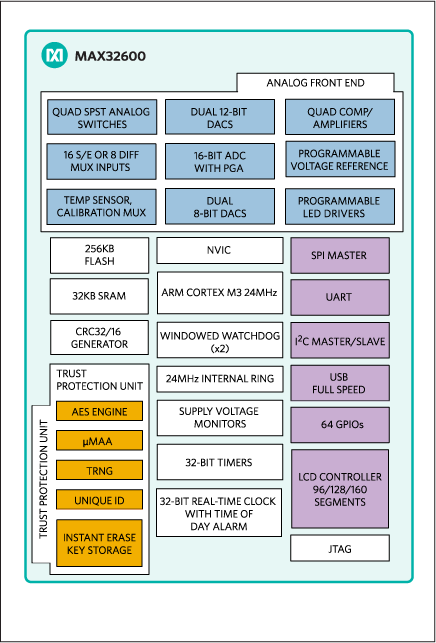

The MAX32600 microcontroller is based on the industry-standard ARM^® Cortex^®-M3 32-bit RISC CPU operating at up to 24MHz. It includes 256KB of flash memory, 32KB of SRAM, a 2KB instruction cache, and integrated high-performance analog peripherals.

The MAX32600 is available in the following package options: 192-ball, 12mm x 12mm CTBGA; 120-ball, 7mm x 7mm CTBGA; and 108-ball, 5.4mm x 4.3mm WLP.

In addition to the free tools provided by Maxim, the MAX32600 supports the Embedded Workbench from IAR. The IAR Embedded Workbench^® incorporates a compiler, an assembler, a linker, and a debugger into one IDE. It is easy to use, provides advanced and highly-efficient optimization features, and is highly integrated with hardware, RTOS products, and middleware. The IAR Embedded Workbench for ARM is available in several versions, including a product package that is designed specifically for ARM Cortex-M core families.

Applications

• Blood Glucose Metering
• Galvanic Skin Response Measurement
• Pulse Oximetry Measurement
• Wearable Medical Devices
