Analog Devices MAX1436B Product Info

• Excellent Dynamic Performance
  • 69.9dB SNR at 5.3MHz
  • 96dBc SFDR at 5.3MHz
  • 95dB Channel Isolation
• Ultra-Low Power
  • 93mW per Channel (Normal Operation)
  • Fast 200µs Wake-Up Time from Standby
• Serial LVDS Outputs
• Pin-Selectable LVDS/SLVS (Scalable Low-Voltage Signal) Mode
• LVDS Outputs Support Up to 30 Inches FR-4 Backplane Connections
• Test Mode for Digital Signal Integrity
• Fully Differential Analog Inputs
• Wide Differential Input Voltage Range (1.4V_P-P)
• On-Chip 1.24V Precision Bandgap Reference
• Clock Duty-Cycle Equalizer
• Compact, 100-Pin TQFP Package with Exposed Pad
• Evaluation Kit Available (Order MAX1436BEVKIT)

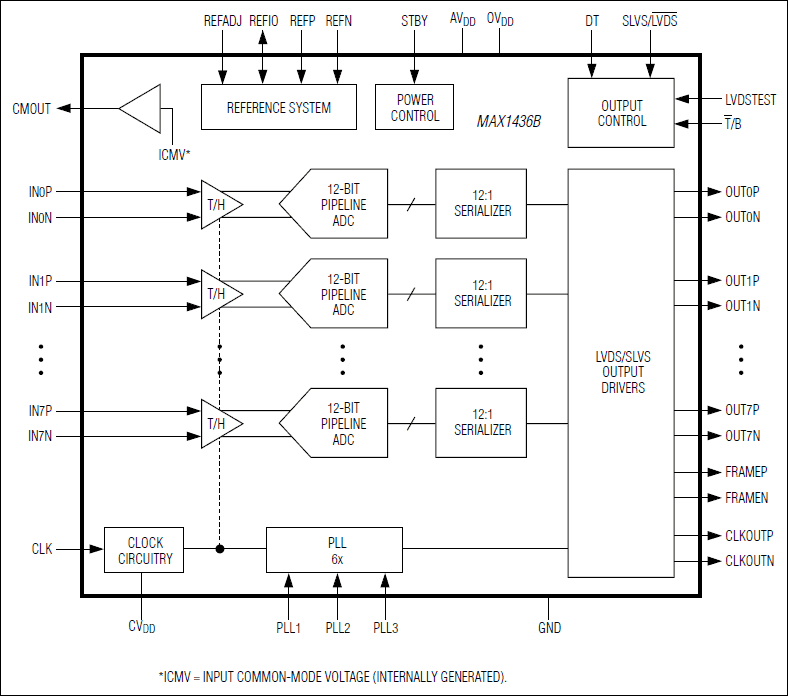

The MAX1436B octal, 12-bit analog-to-digital converter (ADC) features fully differential inputs, a pipelined architecture, and digital error correction incorporating a fully differential signal path. This ADC is optimized for low-power and high-dynamic performance in medical imaging instrumentation and digital communications applications. The MAX1436B operates from a 1.8V single supply and consumes only 743mW (93mW per channel) while delivering a 69.9dB (typ) signal-to-noise ratio (SNR) at a 5.3MHz input frequency. In addition to low operating power, the MAX1436B features a low-power standby mode for idle periods.

An internal 1.24V precision bandgap reference sets the full-scale range of the ADC. A flexible reference structure allows the use of an external reference for applications requiring increased accuracy or a different input voltage range. The reference architecture is optimized for low noise.

A single-ended clock controls the data-conversion process. An internal duty-cycle equalizer compensates for wide variations in clock duty cycle. An on-chip PLL generates the high-speed serial low-voltage differential signal (LVDS) clock.

The MAX1436B has self-aligned serial LVDS outputs for data, clock, and frame-alignment signals. The output data is presented in two's complement or binary format.

The MAX1436B offers a maximum sample rate of 40Msps. See the Pin-Compatible Versions table in the full data sheet for higher-speed versions. This device is available in a small, 14mm x 14mm x 1mm, 100-pin TQFP package with exposed pad and is specified for the extended industrial (-40°C to +85°C) temperature range.

Applications

• Instrumentation
• Multichannel Communications
• Ultrasound and Medical Imaging
