Analog Devices MAX3181 Product Info

• Tiny SOT23-5 Package
• 0.5µA Supply Current
• 1.5Mbps Guaranteed Data Rate
• Meet EIA/TIA-232 and V.28/V.24 Specifications Down to V_CC = +3.0V
• Active-Low INVALID Output Indicates Valid RS-232 Signal at Receiver Input (MAX3181/MAX3183)
• Three-State TTL/CMOS Receiver Output (MAX3180/MAX3182)
• Noninverting RS-232 Output (MAX3182/MAX3183)

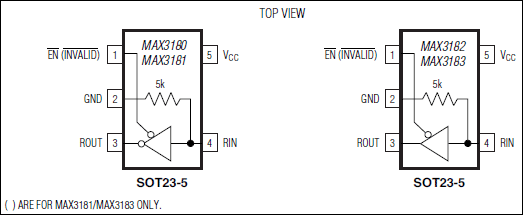

The MAX3180–MAX3183 are single RS-232 receivers in a SOT23-5 package for space- and cost-constrained applications requiring minimal RS-232 communications. These devices minimize power and heat dissipation by consuming only 0.5µA supply current from a +3.0V to +5.5V supply voltage. They guarantee true RS-232 performance up to a 1.5Mbps data rate.

The MAX3180/MAX3182 feature a three-state TTL/CMOS receiver output that is controlled by an active-low EN logic input. The MAX3181/MAX3183 feature an active-low INVALID output that indicates valid RS-232 signals at the receiver input for applications requiring automatic system wake-up. The MAX3180/MAX3181 receivers have a standard inverting output, while the MAX3182/MAX3183 receivers have a noninverting output.

Applications

• Diagnostic Ports
• Digital Still Cameras
• Handheld Equipment
• Network Equipment
• Set-Top Boxes
• Telecommunications
