MAX20807

RECOMMENDED FOR NEW DESIGNS

8A, 3MHz, 2.7V to 16V, Step-Down Switching Regulator Shrink your new power designs footprint with compact and fast switching regulator

Analog Devices MAX20807 Product Info

10 February 2026 4

Features

High Power Density with Low Component Count

Single-Supply Operation with Integrated LDO for Bias Generation
Compact 3.0mm x 2.5mm, 14-Pin, FC2QFNPackage
Internal Compensation

Wide Operating Range

2.7V to 16V Input Voltage Range
0.5V to 5.8V Output Voltage Range
500kHz to 3MHz Configurable Switching Frequency

-40°C to +150°C Junction Temperature Range
Two Pin-Strap Programming Pins to Select Different Configurations

Optimized Performance and Efficiency

92% Peak Efficiency with V_DDH = 12V, V_OUT = 1.8V, and f_SW = 1MHz
Selectable AMS to Improve Load Transient
Selectable DCM to Improve Light Load Efficiency

Part details & applications

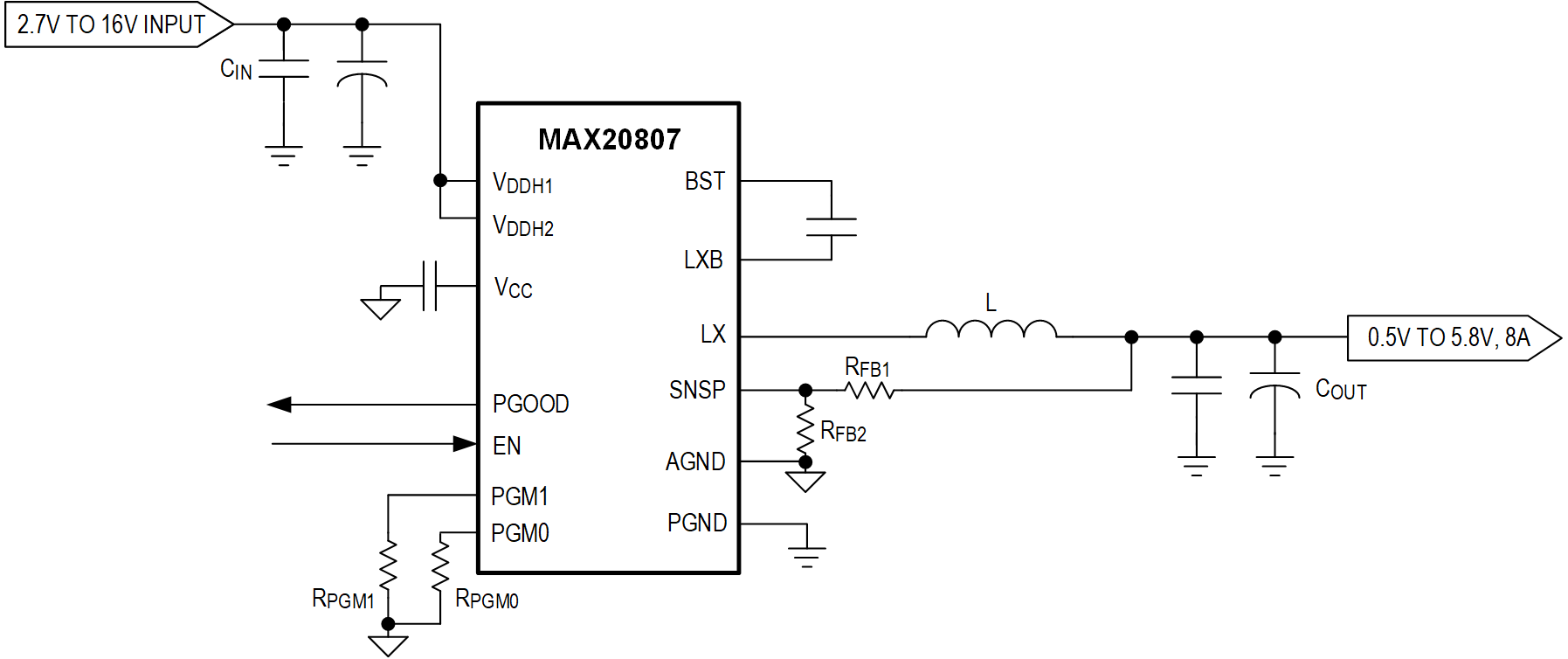

The MAX20807 is a fully integrated, highly efficient, step-down DC-DC switching regulator. It is able to operate from 2.7V to 16V input supplies, and the output can be regulated from 0.5V to 5.8V, delivering up to 8A of load current.

The switching frequency of this device can be configured from 500kHz to 3.0MHz and provides the capability of optimizing the design in terms of solution size and performance.

The MAX20807 utilizes fixed-frequency, current-mode control with internal compensation. The MAX20807 features a selectable advanced modulation scheme (AMS) to provide improved dynamic load-transient performance. The device also features selectable discontinuous current mode (DCM) operation to improve light load efficiency.

Operation settings and configurable features can be selected by connecting pin-strap resistors from the PGM_ pins to ground.

The MAX20807 has an internal 1.8V LDO output to power the gate drives and internal circuitry (V_CC).

The MAX20807 integrates multiple protections including positive and negative overcurrent protection, output overvoltage protection, and overtemperature protection to ensure a robust design.

The MAX20807 is available in a compact 3.0mm x 2.5mm FC2QFN package that supports -40°C to +150°C junction temperature operation.
