Analog Devices MAX17330 Product Info

• Non-Volatile Programmable Stand-Alone AccuCharge Charger
  • 0.2% Charge Voltage 3.6V to 4.8V, Configurable
  • 1% Charge Current, 256 Current Settings
  • FET Temperature Limit and Heat Regulation
  • Prequal and Step-Charging Options
  • JEITA—6 Temperature Regions
• Battery Health + Programmable Safety/Protection
  • Overvoltage/Overcharge-Current
    •  Temperature Region Dependent
  • Overcharge/Discharge/Short-Circuit Current
  • Over/Under Temperature
  • Zero-Volt or Greater than 1.8V Charging Option
  • Undervoltage + SmartEmpty
• Pushbutton Wakeup/Factory Ship Mode (0.5μA)
• ModelGauge m5 EZ Algorithm
  • Percent, Capacity, Time-to-Empty/Full, Age
  • Cycle+™ Age Forecast
• Dynamic Power—Estimates Power Capability
• SHA-256 Authentication to Prevent Cloning
• Precision Measurement Without Calibration
  • ​Current, Voltage, Power, Time, Cycles
  • Die Temperature​ and two Thermistors>
• History Logging, User Data
• Low Quiescent Current
  • FETs Enabled: 28µA Active, 21µA Hibernate>
  • FETs Disabled: 8µA Ship, 0.5µA/0.1µA Shutdown
• 2-wire (I²C/SMBus™)

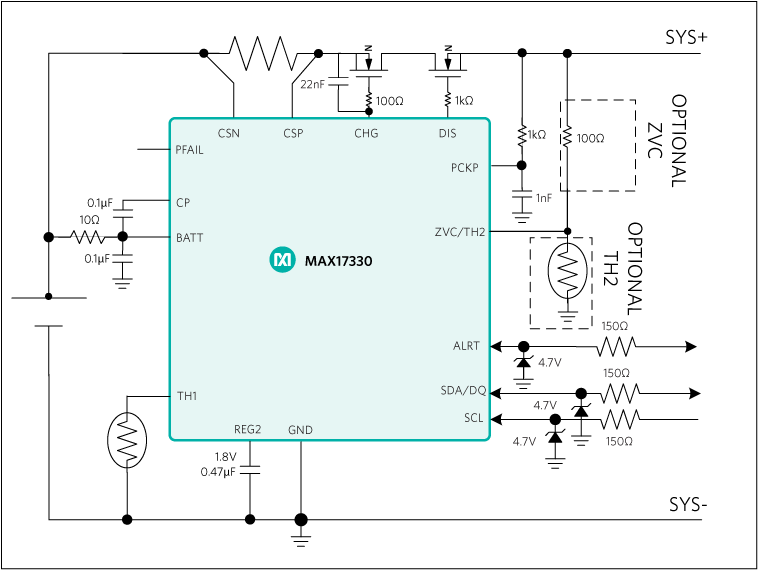

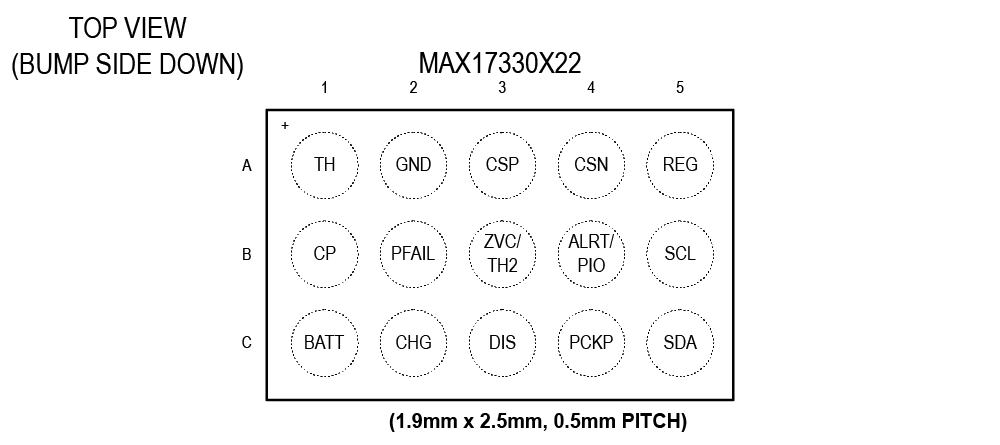

• 1.9mm x 2.5mm 15-bump 0.5mm pitch WLP

The MAX17330 is not recommended for new designs. The replacement part is the MAX17332.

The MAX17330 is a 28μA I_Q stand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the MAX17330 regulates charging by modulating the charge N-FET, using AccuCharge™ charger technology. The MAX17330 regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following:

• Low-Power Charging
  • 1mA to 500mA directly from universal 5V USB
  • No USB identification/coordination needed

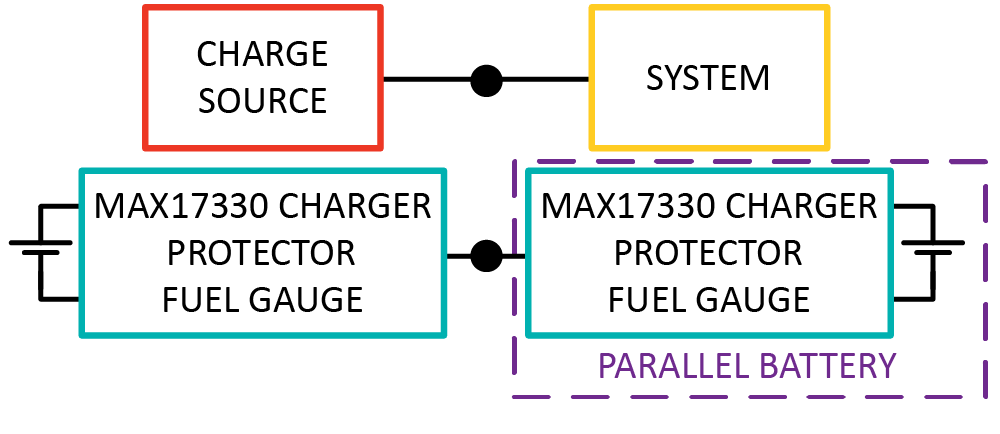

• High-Power Parallel Packs (>1000mA)
  • Independently charges parallel packs
  • Prevents cross-charging for parallel batteries
  • Coordinates external DC-DC with alerts
  • Minimizes dropout and heat
• Protection and Charging Control —pack or host side

The MAX17330 ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.

The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.

The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature an
