MAX20413

RECOMMENDED FOR NEW DESIGNS

2.2MHz Sync Boost and Step-Down Converters with Programmable Watchdog

Analog Devices MAX20413 Product Info

10 February 2026 3

Features

Multiple Functions for Small Size
- Synchronous 750mA Boost Converter
- Fixed from 3.8V to 8.5V in 100mV Steps
- Synchronous Buck Converter Up to 3A
  - Fixed from 0.8V to 3.8V in 25mV Steps
  - External Resistor-Adjustable
- Programmable Windowed Watchdog
- 3.0V to 5.5V Operating Supply Voltage
- 2.2MHz Operation
- Individual Channel RESET_ Outputs
- High-Precision for ASIL Applications
  - ±2% Output-Voltage Accuracy (OUT1) and ±1.5% Output-Voltage Accuracy (OUT2)
  - ±1.5% Overvoltage/Undervoltage Monitoring Accuracy
  - Excellent Load-Transient Performance

Diagnostics and Redundant Circuits
- ASIL-C Compliant
- Redundant Reference
- Fail Safe on Open Pins
- Shorted-Pin Detection on RESET1/RESET2
- Input Overvoltage Detection
Robust for the Automotive Environment
- Current-Mode, Forced-PWM and Skip Operation
- Overtemperature and Output Short-Circuit Protection
- 4mm x 4mm 24-Pin TQFN with Exposed Pad
- -40°C to +125°C Automotive Temperature Range

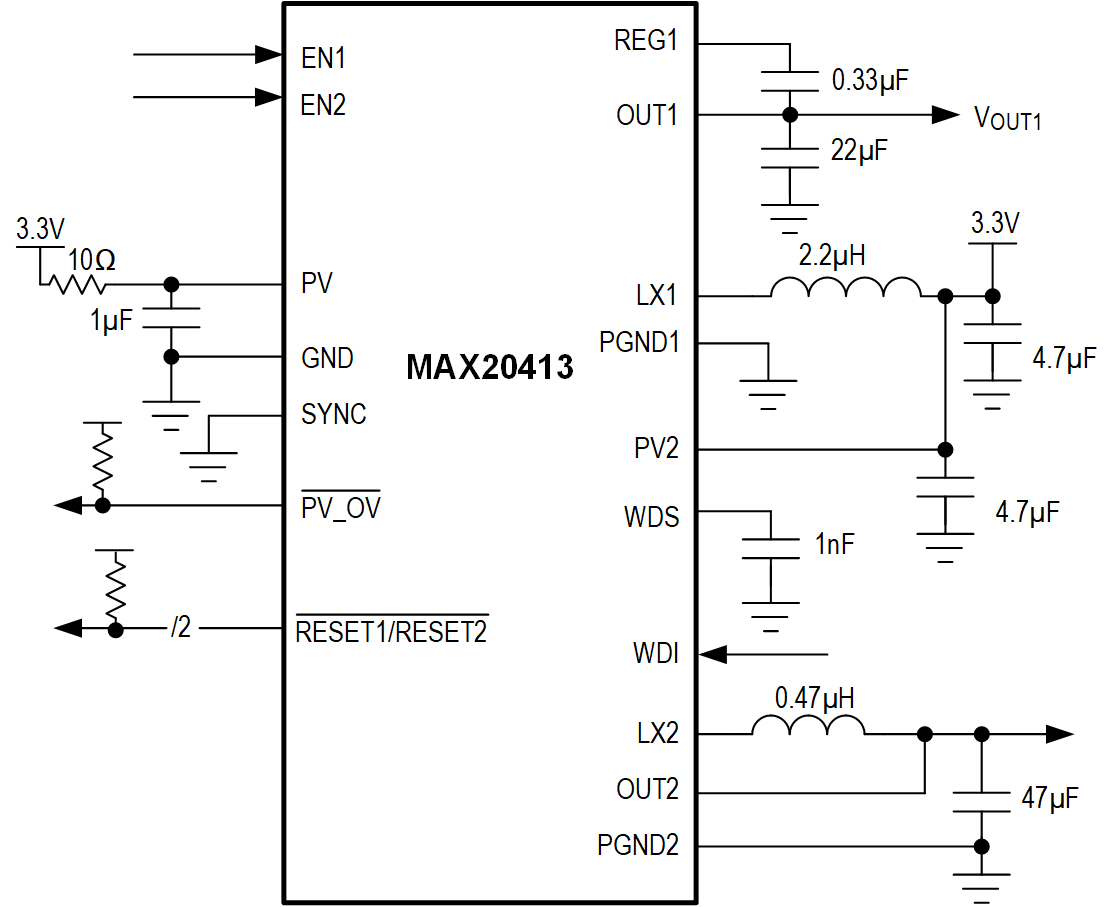

Part details & applications

The MAX20413 is a high-efficiency, two-output, low-voltage DC-DC converter. OUT1 boosts the input supply up to 8.5V at up to 750mA, while a synchronous step-down converter operates from a 3.0V to 5.5V input voltage range and provides a 0.8V to 3.8V output voltage range at up to 3A. The boost converter achieves ±2% and the buck converter achieves ±1.5% output error over load, line, and temperature range.

The IC features a 2.2MHz fixed-frequency pulse-width modulation (PWM) mode for better noise immunity and load-transient response, and a pulse-frequency-modulation mode (skip) for increased efficiency during light-load operation. The 2.2MHz frequency operation allows for the use of all-ceramic capacitors and minimizes external components. The programmable spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low R_DS(ON) switches improve efficiency at heavy loads, and make the layout a much simpler task with respect to discrete solutions.

The IC’s step-down regulator can be configured with either a factory-preset or resistor-adjustable output voltage (see the Ordering Information/Selector Guide for options). Other features include soft-start, overcurrent, and overtemperature protections.
