MAX20327

RECOMMENDED FOR NEW DESIGNS

12V Capable, Low-RON, Beyond-the-Rails DPDT Analog Switches Compact DPDT Can Switch -5.5V to 12V Signals with a Single VCC as Low as 1.6V

Analog Devices MAX20327 Product Info

10 February 2026 6

Features

Distortion-Free Beyond-the-Rails Signaling
- Negative Voltage Audio and Video Signal Capable
- -5.5V to +12V Analog Signal Range Independent of V_CC
- On-Resistance 0.2Ω (Typ)
- +1.6V to +5.5V Single-Supply Range
- Total Harmonic Distortion Plus Noise 0.001% (Typ)
- On-Resistance Flatness 0.001Ω (Typ)
Low Supply Current 30μA (Typ) at 1.6V
- Can be Powered by GPIO
- High-Impedance Mode When V_CC Not Applied

ESD Protection on COM_
- ±15kV Human Body Model
- ±8kV IEC 61000-4-2 Air Gap
- ±6kV IEC 61000-4-2 Contact
Design Flexibility
- Break-Before-Make Operation
- 9-Bump WLP (1.6mm x 1.6mm)
- −40°C to +85°C Operating Temperature Range

Part details & applications

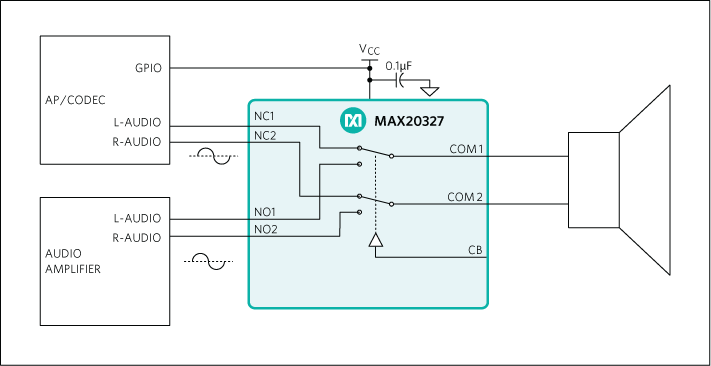

The MAX20327 ultra-small, low-on-resistance (R_ON) double-pole/double-throw (DPDT) analog switches feature Beyond-the-Rails™ capability that allows signals from -5.5V to +12V to pass without distortion, even when the power supply is below the signal range. The low on-resistance (0.2Ω) also makes the devices ideal for low-distortion switching applications, such as audio or video.

The MAX20327 is fully specified to operate from a single +1.6V to +5.5V power supply. Because of the low supply current requirement, V_CC can be provided by a GPIO. When power is not applied, the switches go to a high-impedance mode and all analog signal ports can withstand signals from -5.5V to +5.5V. The switches are controlled with a single control bit, CB.

The MAX20327 is available in a 1.6mm x 1.6mm, 0.4mm pitch, 9-bump wafer-level package (WLP) and operates over the -40°C to +85°C extended temperature range.

Applications

Cell Phones
Portable Audio/Video Equipment
Portable Navigation Devices
Tablets
