Analog Devices MAX19995 Product Info

• 1700MHz to 2200MHz RF Frequency Range
• 1400MHz to 2000MHz LO Frequency Range
• 1750MHz to 2700MHz LO Frequency Range (MAX19995A)
• 50MHz to 500MHz IF Frequency Range
• 9dB Typical Conversion Gain
• 9dB Typical Noise Figure
• +24.8dBm Typical Input IP3
• +13.3dBm Typical Input 1dB Compression Point
• 79dBc Typical 2RF-2LO Spurious Rejection at P_RF = -10dBm
• Dual Channels Ideal for Diversity Receiver Applications
• 49dB Typical Channel-to-Channel Isolation
• Low -3dBm to +3dBm LO Drive
• Integrated LO Buffer
• Internal RF and LO Baluns for Single-Ended Inputs
• Built-In SPDT LO Switch with 56dB LO-to-LO Isolation and 50ns Switching Time
• Pin Compatible with the MAX19985/MAX19985A/MAX19995A Series of 700MHz to 2200MHz Mixers
• Pin Similar to the MAX19997A/MAX19999 Series of 1800MHz to 4000MHz Mixers
• Single +5.0V or +3.3V Supply
• External Current-Setting Resistors Provide Option for Operating Device in Reduced-Power/Reduced-Performance Mode

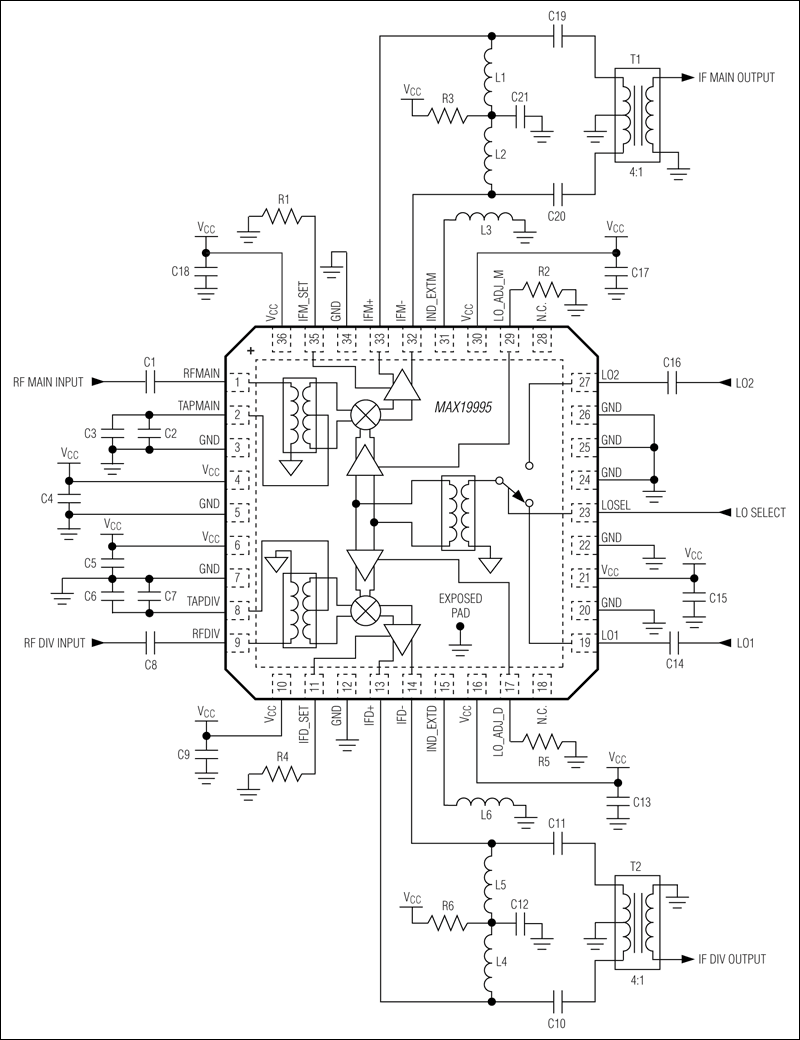

The MAX19995 dual-channel downconverter provides 9dB of conversion gain, +24.8dBm input IP3, +13.3dBm 1dB input compression point, and a noise figure as low as 9dB for 1700MHz to 2200MHz diversity receiver applications. With an optimized LO frequency range of 1400MHz to 2000MHz, this mixer is ideal for low-side LO injection architectures. High-side LO injection is supported by the MAX19995A, which is pin-pin and functionally compatible with the MAX19995.

In addition to offering excellent linearity and noise performance, the MAX19995 also yields a high level of component integration. This device includes two double-balanced passive mixer cores, two LO buffers, a dual-input LO selectable switch, and a pair of differential IF output amplifiers. Integrated on-chip baluns allow for single-ended RF and LO inputs. The MAX19995 requires a nominal LO drive of 0dBm and a typical supply current of 297mA at V_CC = 5.0V or 212mA at V_CC = 3.3V.

The MAX19995/MAX19995A are pin compatible with the MAX19985/MAX19985A series of 700MHz to 1000MHz mixers and pin similar with the MAX19997A/MAX19999 series of 1800MHz to 4000MHz mixers, making this entire family of downconverters ideal for applications where a common PCB layout is used across multiple frequency bands.

The MAX19995 is available in a 6mm x 6mm, 36-pin thin QFN package with an exposed pad. Electrical performance is guaranteed over the extended temperature range, from T_C = -40°C to +85°C.

Applications

• cdma2000® Base Stations
• DCS1800 and EDGE Base Stations
• Fixed Broadband Wireless Access
• Military Systems
• PCS1900 and EDGE Base Stations
• PHS/PAS Base Stations
• Private Mobile Radios
• UMTS/WCDMA/LTE Base Stations
• Wireless Local Loop
