Analog Devices MAX1736 Product Info

• Small 6-Pin SOT23 Package
• Stand-Alone or µP-Controlled Operation
• 0.5% Voltage Set-Point Accuracy
• Lowest Power Dissipation
• Low 4.7V min Input Voltage
• Top-Off Charging to Achieve Full Battery Capacity
• No Inductor Required
• Safely Precharges Near-Dead Cells
• Automatic Power-Down when Input Power Removed

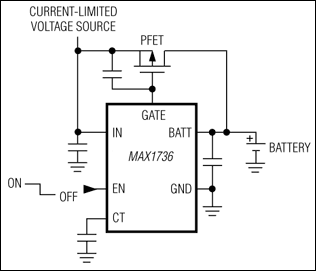

The MAX1736 is a simple, low-cost, single-cell lithium-ion (Li+) battery charger for small hand-held applications. When accompanied by a current-limited voltage source (such as a wall cube), the MAX1736 provides simple, accurate charging and termination control for single-cell Li+ batteries. The MAX1736EUT42 is preset to a 4.2V battery regulation voltage, while the MAX1736EUT41 is preset to 4.1V.

The MAX1736 initiates charging in one of four ways: battery insertion, charger power-up, battery voltage threshold, and by external manipulation of the EN pin. The device features an internal precharge current source that safely charges near-dead cells, as well as input-supply detection that shuts down the MAX1736 when the supply is removed to minimize battery current drain.

The MAX1736 accepts input voltages up to 22V, making it compatible with a wide range of input supplies. It has a single control input yet offers stand-alone and microprocessor-controlled operation. The MAX1736 is packaged in a small SOT23-6 package. An evaluation kit (EV kit) is available to reduce design time.

Applications

• Cradle Chargers
• Digital Still Cameras
• PDAs and Other Handheld Devices
• Self-Charging Battery Packs
• Single-Cell Li+ Portable Applications
• Small Handheld Equipment
• Wireless Handsets
