Analog Devices MAX17250 Product Info

• Input Voltage Range 2.7V to 18V
  • 1 or 2 Cell Li-ion Batteries
• Output Voltage Range 3V to 18V, > V_IN
• Integrated Power FETs
• Selectable Input Peak Current Limit (ISET)
  • 3.5A, 2.7A, or 1.85A
• 93% Efficiency
• Low Power
  • 0.1µA True Shutdown Current
  • 60µA Quiescent Current
• Protection
  • True Shutdown Prevents Current Flowing Between Input and Output
  • Soft-Start Inrush Protection
  • Short-Circuit Protection
  • Overtemperature Protection
  • -40°C to +125°C Operation

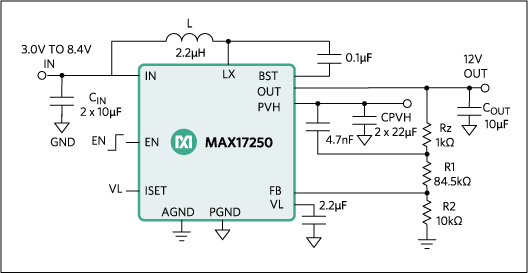

The MAX17250 DC-DC boost converter is a high-efficiency, low quiescent current, synchronous boost (step-up) converter with True Shutdown™, programmable input current limit, and short-circuit protection. The MAX17250 has a wide input voltage range of 2.7V to 18V and generates an output voltage of 3V to 18V. The MAX17250 has a maximum on-time of 800ns and implements three modes of operation. The first mode of operation is a soft-start mode at power-up. The second mode of operation is normal operation and utilizes a fixed on-time/minimum off-time Pulse Frequency Modulation (PFM) architecture that uses only 60µA (typ) quiescent current due to the converter switching only when needed. The last mode is True Shutdown, where the output is completely disconnected from the input, and the battery drain is minimized to 0.1µA (typ) shutdown current. The MAX17250 is available in a compact, 12-bump, 1.72mm x 1.49mm wafer-level package (WLP) or a 14-pin, 3mm x 3mm TDFN package.

Applications

• 1 or 2 Cell Li-ion Battery Applications
• Battery Powered Internet of Things (IoT) Device
• Buzzer/Alarm Driver
• Digital Cameras
• Display Supply
