Analog Devices MAX16919 Product Info

• Two 4.0Ω (typ) R_ON USB 2.0 Data Switches
• Current-Limited 22mΩ (typ) BUS Switch with High-Capacitive Load Capability
• 480Mbps or 12Mbps USB 2.0 Operation
• Short-to-Battery and Short-to-GND Protection on Protected HVBUS Output
• Short-to-Battery and Short-to-HVBUS Protection on Protected HVD+ and HVD- Outputs
• 20ms Fault-Blanking Timeout Period
• Integrated Overcurrent and Short-Circuit Autoretry
• Integrated USB Host-Charger Port-Detection Circuitry
• High ESD Protection (HVD+, HVD-, HVBUS)
  • ±15kV Human Body Model
  • ±15kV IEC 61000-4-2 Air Gap
  • ±8kV IEC 61000-4-2 Contact
• 16-Pin (3.90mm x 4.94mm) QSOP Package
• -40°C to +105°C Operating Temperature Range
• AEC-Q100 Qualified

The MAX16919 provides high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The device supports both Hi-Speed USB (480Mbps) and full-speed USB (12Mbps) operation. In addition, the device includes integrated circuitry to enable fast-charging for consumer devices adhering to the Hi-Speed USB host-charger port-detection protocol.

The short-circuit protection features include short-to-battery on the protected HVBUS, HVD+, and HVD- outputs, as well as short-to-HVBUS on the protected HVD+ and HVD- outputs. The device is capable of a short-to-battery condition of up to +18V. Short-to-GND and overcurrent protection are also provided on the HVBUS output to protect the internal BUS power rail from overcurrent faults.

The device features high-ESD protection to ±15kV Air Gap method and ±8kV Contact method on all protected HVBUS, HVD+, and HVD- outputs.

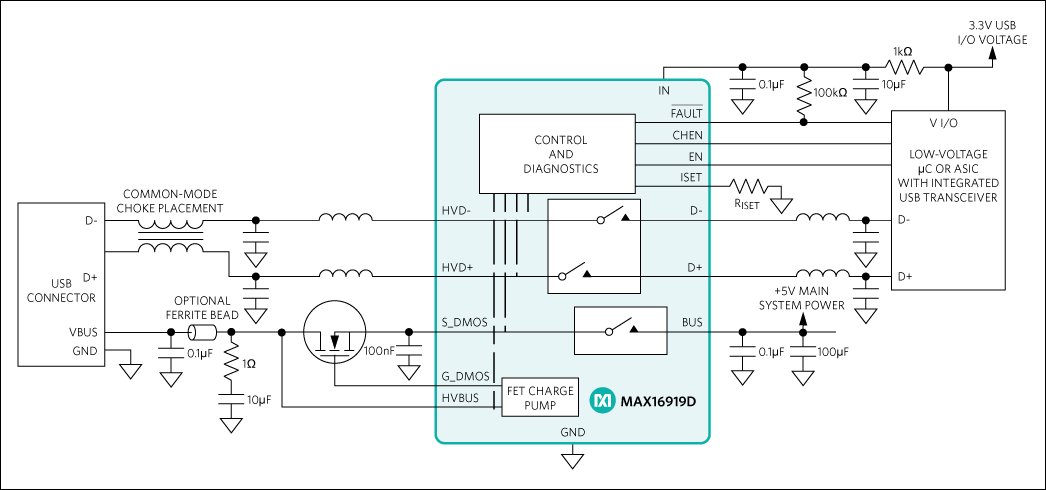

The device features two low 4.0Ω on-resistance Hi-Speed USB switches and a current-limited low-voltage 22mΩ BUS switch, and provides an integrated high-voltage external power-switch controller. The BUS switch can start up into large capacitive noncompliant USB loads. The device also features an enable input, a fault output, and an integrated host-charger port-detection circuit adhering to the USB 2.0 battery charging specification.

The device is available in a 16-pin QSOP package, and operates over -40°C to +105°C temperature range.

Applications

• Automotive USB Protection
