Analog Devices MAX1640 Product Info

• 95% Efficiency
• +5.5V to +26V Input Supply Range
• 2V to 24V Adjustable-Output Voltage Range
• 100% Maximum Duty Cycle (Low Dropout)
• Up to 500kHz PWM Operation
• Optional Synchronous Rectifier
• 16-Pin QSOP Package
• Current-Sense Accuracy:
  • 2% (MAX1641)
  • 5.3% (MAX1640)

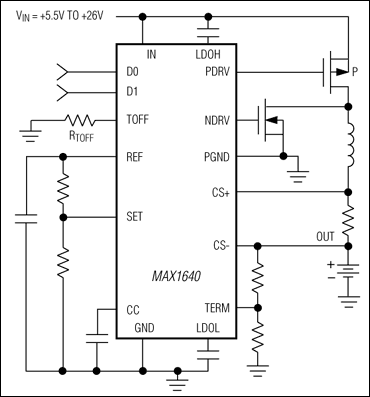

The MAX1640/MAX1641 CMOS, adjustable-output, switch-mode current sources operate from a +5.5V to +26V input, and are ideal for microprocessor-controlled battery chargers. Charging current, maximum output voltage, and pulse-trickle charge are programmed with external resistors. Programming the off-time modifies the switching frequency, suppressing undesirable harmonics in noise-sensitive circuits. The MAX1640's high-side current sensing allows the load to connect directly to ground, eliminating ground-potential errors. The MAX1641 incorporates a low-side current sense.

The MAX1640/MAX1641 step-down pulse-width-modulation (PWM) controllers use an external P-channel MOSFET switch and an optional, external N-channel MOSFET synchronous rectifier for increased efficiency. An internal low-dropout linear regulator provides power for the internal reference and circuitry as well as the gate drive for the N-channel synchronous rectifier.

The MAX1640/MAX1641 are available in space-saving, 16-pin narrow QSOP packages.

Applications

• Backup Battery Charger
• Battery-Powered Applications
• Cell Phones
• Cordless Phones
• Handy Terminals
• Laptop, Notebook, and Palmtop Computers
• PCS Phones
• Portable Consumer Products
