Analog Devices MAX14917 Product Info

• Robust Solutions
  • 65V Absolute Maximum Supply Range
  • CRC Error Checking on the SPI Interface
  • Watchdog Timers for Monitoring SPI and SYNCH
  • Per Channel Overload Diagnostic and Protection
  • Loss of V_DD or GND Protection
  • Thermal Shutdown Protection
  • Integrated ±1kV / 42Ω IEC 61000-4-5 Surge Protection
  • ±7kV / IEC 61000-4-2 Contact Discharge Method
  • ±30kV / IEC 61000-4-2 Air Discharge Method
  • -40° C to +125°C Operating Ambient Temperature
• Reduces Power and Heat Dissipation
  • 120mΩ (typ) On-Resistance at T_A = 25°C
  • 2.5mA (typ) Supply Current
  • Accurate Output Current Limiting
• Flexible
  • SYNCH Input for Simultaneous Update of Switches
  • LED Driver Matrix for 16 LEDs, Powered from 3.0V to 36V
  • Internal Clamps for Fast Inductive Load Demagnetization
  • Daisy Chainable SPI
  • Flexible Logic Voltage Interface from 2.5V to 5.5V
  • Pin Compatible with the MAX14915 and MAX14916 in Daisy-Chain Configuration
• Compact 6mm x 6mm FC2QFN Package

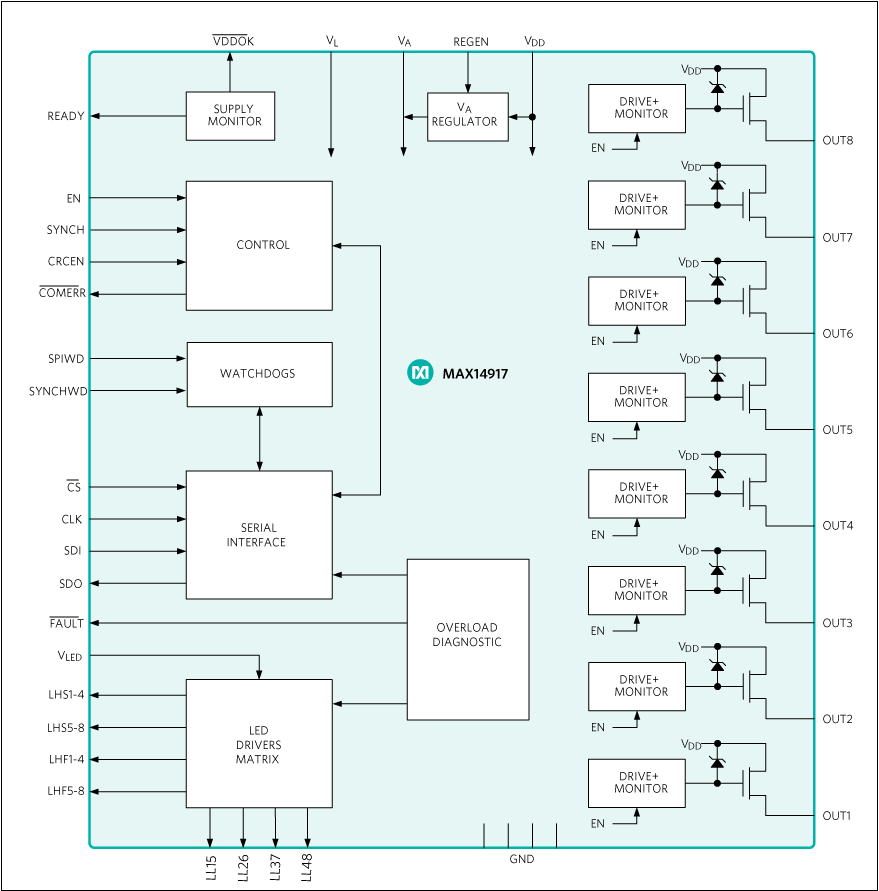

The MAX14917 has eight high-side switches specified to deliver up to 700mA (min) continuous current per channel. The high-side switches have on-resistance of 120mΩ (typ) at 25°C ambient temperature.

The device has an SPI interface that can be daisy chained, allowing communication with multiple MAX14917 devices utilizing a common SPI chip select (active-low CS). There are also per-channel overload diagnostics provided through the SPI interface. Two watchdog timers provide an additional safety check of the master-to-device connectivity.

The MAX14917 features a 4 x 4 LED cross-bar matrix, which provides a visual indication of channel status and overload conditions for each channel, and an integrated line-to-ground and line-to-line surge protection provides robustness to the electrical stress as per IEC 61000-4-5 and requires only one TVS on V_DD. The MAX14917 is available in a compact 48-pin 6mm x 6mm FC2QFN package.

Applications

• Industrial Digital Outputs
• PLC Systems
• Factory Automation
• Building Automation
• Industrial IoT
