MAX14780E

PRODUCTION

+5.0V, ±30kV ESD-Protected, Fail-Safe, Hot-Swap, RS-485 Transceiver RS-485 Transceiver with High ±30kV ESD Protection for Robust System Performance

Analog Devices MAX14780E Product Info

10 February 2026 5

Features

Integrated Protection Increases Robustness
- ±30kV HBM ESD per JEDEC JS-001-2012
- ±12kV Contact ESD per IEC 61000-4-2
- ±15kV Air Gap ESD per IEC 61000-4-2
- True Fail-Safe Receiver Prevents False Transitions on Receiver Input Short or Open
- Hot Swap Eliminates False Transitions During Power-Up or Hot Insertion
- Short-Circuit Protected Outputs Low Current Reduces Power Consumption
Low Current Reduces Power Consumption
- 10µA Shutdown Current
- 1.2mA of Supply Current When Unloaded

Part details & applications

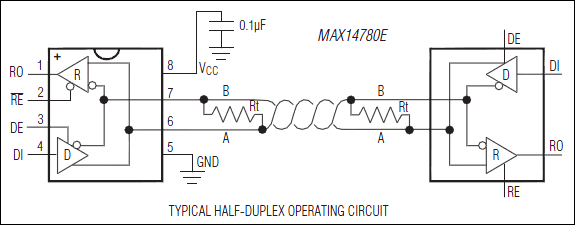

The MAX14780E is a +5V, ±30kV HBM ESD half duplex RS-485 transceiver.

The MAX14780E features reduced slew-rate drivers that minimize EMI and reduce reflections caused by improperly terminated cables, allowing error-free data transmission up to 500kbps.

The MAX14780E is available in an 8-pin SO and PDIP packages operating over a temperature range from -40°C to +85°C.

Applications

Industrial Control
Instrumentation
Lighting Systems
PROFIBUS
Security Systems
Telecom
Utility Meters
