Analog Devices MAX14594E Product Info

• Distortion-Free Beyond-the-Rails Signaling
  • Negative Audio and Video Signal Capable
  • -5.5V to +5.5V Analog Signal Range Independent from V_CCEN
  • On-Resistance 0.2Ω (typ)
  • +1.6V to +5.5V Single-Supply Range
  • Click-and-Pop Suppression
• Smooth Switch Transition
  • Break-Before-Make Operation
• Low Supply Current 30µA (typ) at 1.6V
  • Can Be Powered by a GPIO
  • High-Impedance Mode When V_CCEN Not Applied
• ESD Protection on COM_
  • ±15kV Human Body Model
  • ±10kV IEC 61000-4-2 Air Gap
  • ±8kV IEC 61000-4-2 Contact
• ESD Protection on NC_ and NO_
  • ±15kV Human Body Model
• Small Board Space
  • 9-Bump WLP (1.2mm x 1.2mm)
• -40°C to +85°C Operating Temperature Range

The MAX14589E/MAX14594E high-density, double-pole/double-throw (DPDT) analog switches feature Beyond-the-Rails^™ signal capability that allows signals from -5.5V to +5.5V to pass without distortion even when the power supply is below the signal range. The low R_ON resistance (0.2Ω) makes the devices ideal for low-distortion switching, such as audio.

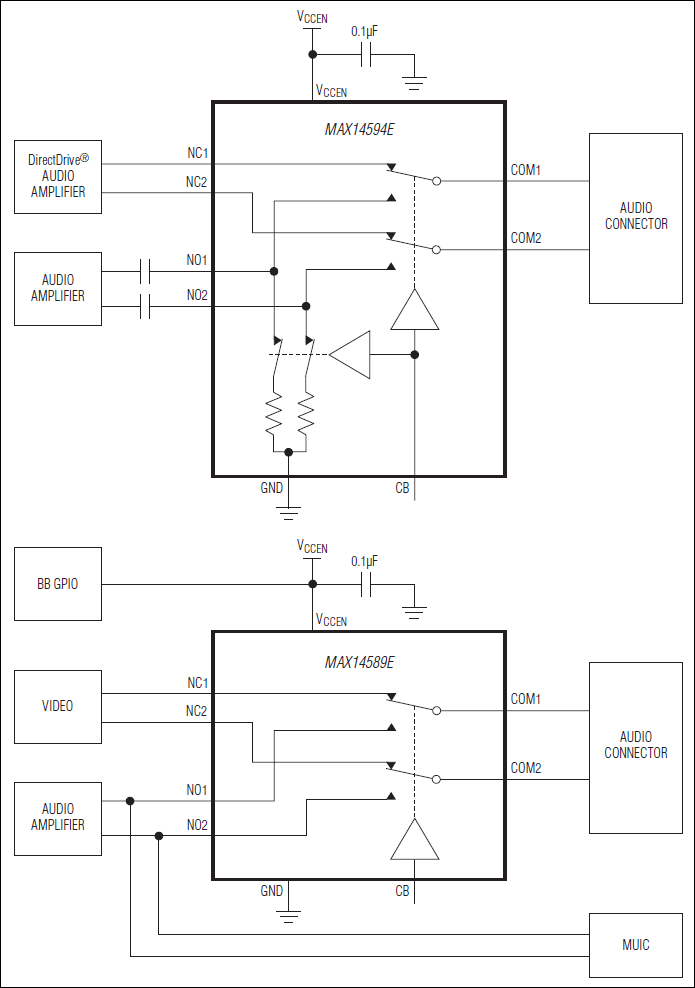

The MAX14594E has internal shunt switches that discharge the audio amplifier AC-coupling capacitance at the normally open (NO1 and NO2) terminals. This feature reduces click-and-pop sounds that occur when switching audio signals between precharged points.

The switches are fully specified to operate from a single +1.6V to +5.5V power supply. Because of the low supply current requirement, V_CCEN can be provided by a GPIO. When the power is not applied, switches go to a high-impedance mode and all analog signal ports can withstand signals within the analog signal range. The devices control the switches with a control bit, CB.

The MAX14589E/MAX14594E are available in a 1.2mm × 1.2mm, 0.4mm pitch, 9-bump wafer-level package (WLP) and operate over the -40°C to +85°C extended temperature range.

Applications

• Portable Audio/Video Equipment
• Portable Navigation Devices
• Smartphones
• Tablets
