MAX1314
  • MAX1314

MAX1314

PRODUCTION

8-/4-/2-Channel, 12-Bit, Simultaneous-Sampling ADCs with ±10V, ±5V, and 0 to +5V Analog Input Ranges

Analog Devices MAX1314 Product Info

10 February 2026 4

Features

  • Up to Eight Channels of Simultaneous Sampling
    • 8ns Aperture Delay
    • 100ps Channel-to-Channel T/H Match
  • Extended Input Ranges
    • 0 to +5V (MAX1304/MAX1305/MAX1306)
    • -5V to +5V (MAX1308/MAX1309/MAX1310)
    • -10V to +10V (MAX1312/MAX1313/MAX1314)
  • Fast Conversion Time
    • One Channel in 0.72µs
    • Two Channels in 0.9µs
    • Four Channels in 1.26µs
    • Eight Channels in 1.98µs
  • High Throughput
    • 1075ksps/Channel for One Channel
    • 901ksps/Channel for Two Channels
    • 680ksps/Channel for Four Channels
    • 456ksps/Channel for Eight Channels
  • ±1 LSB INL, ±0.9 LSB DNL (max)
  • 84dBc SFDR, -86dBc THD, 71dB SINAD, fIN = 500kHz at 0.4dBFS
  • 12-Bit, 20MHz, Parallel Interface
  • Internal or External Clock
  • +2.5V Internal Reference or +2.0V to +3.0V External Reference
  • +5V Analog Supply, +3V to +5V Digital Supply
    • 55mA Analog Supply Current
    • 1.3mA Digital Supply Current
    • Shutdown and Power-Saving Modes
  • 48-Pin LQFP Package (7mm x 7mm Footprint)

Part details & applications

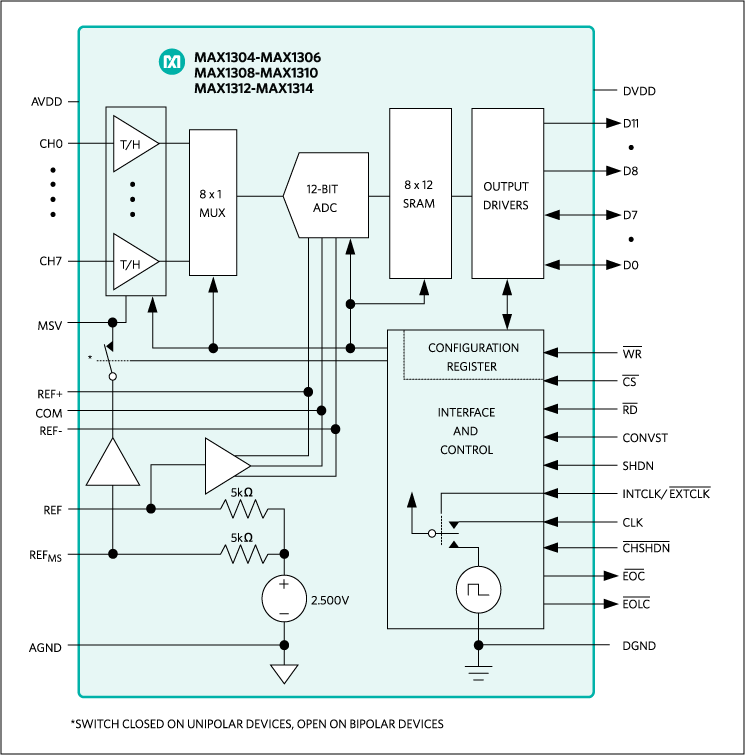

The MAX1304–MAX1306/MAX1308–MAX1310/MAX1312–MAX1314 12-bit, analog-to-digital converters (ADCs) offer eight, four, or two independent input channels. Independent track-and-hold (T/H) circuitry provides simultaneous sampling for each channel. The MAX1304/MAX1305/MAX1306 provide a 0 to +5V input range with ±6V fault-tolerant inputs. The MAX1308/MAX1309/MAX1310 provide a ±5V input range with ±16.5V fault-tolerant inputs. The MAX1312/MAX1313/MAX1314 have a ±10V input range with ±16.5V fault-tolerant inputs. These ADCs convert two channels in 0.9µs, and up to eight channels in 1.98µs, with an 8-channel throughput of 456ksps per channel. Other features include a 20MHz T/H input bandwidth, internal clock, internal (+2.5V) or external (+2.0V to +3.0V) reference, and power-saving modes.

A 20MHz, 12-bit, bidirectional parallel data bus provides the conversion results and accepts digital inputs that activate each channel individually.

All devices operate from a +4.75V to +5.25V analog supply and a +2.7V to +5.25V digital supply and consume 57mA total supply current when fully operational.

Each device is available in a 48-pin 7mm x 7mm LQFP package and operates over the extended -40°C to +85°C temperature range.

Applications

  • Multiphase Motor Control
  • Multiphase Power Monitoring
  • Power-Factor Monitoring
  • Power-Grid Synchronization
  • SIN/COS Position Encoder
  • Vibration and Waveform Analysis
