Analog Devices MAX1271 Product Info

• 12-Bit Resolution, 1/2LSB Linearity
• +5V Single-Supply Operation
• SPI/QSPI and MICROWIRE-Compatible 3-Wire Interface
• Four Software-Selectable Input Ranges
  • MAX1270: 0 to +10V, 0 to +5V, ±10V, ±5V
  • MAX1271: 0 to V_REF, 0 to V_REF/2, ±V_REF, ±V_REF/2
• Eight Analog Input Channels
• 110ksps Sampling Rate
• ±16.5V Overvoltage-Tolerant Input Multiplexer
• Internal 4.096V or External Reference
• Two Power-Down Modes
• Internal or External Clock
• 24-Pin Narrow DIP or 28-Pin SSOP Packages

The MAX1270/MAX1271 are multirange, 12-bit data-acquisition systems (DAS) that require only a single +5V supply for operation, yet accept signals at their analog inputs that may span above the power-supply rail and below ground. These systems provide eight analog input channels that are independently software programmable for a variety of ranges: ±10V, ±5V, 0 to +10V, 0 to +5V for the MAX1270; ±V_REF, ±V_REF/2, 0 to V_REF, 0 to V_REF/2 for the MAX1271. This range switching increases the effective dynamic range to 14 bits and provides the flexibility to interface 4-20mA, ±12V, and ±15V powered sensors directly to a single +5V system. In addition, these converters are fault protected to ±16.5V; a fault condition on any channel will not affect the conversion result of the selected channel. Other features include a 5MHz bandwidth track/hold, software-selectable internal/external clock, 110ksps throughput rate, and internal 4.096V or external reference operation.

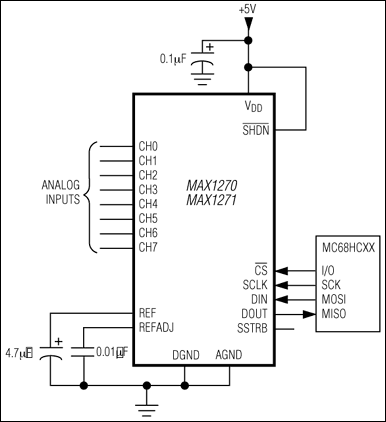

The MAX1270/MAX1271 serial interface directly connects to SPI™/QSPI™ and MICROWIRE™ devices without external logic.

A hardware shutdown input (SHDN-bar) and two software-programmable power-down modes, standby (STBYPD) or full power-down (FULLPD), are provided for low-current shutdown between conversions. In standby mode, the reference buffer remains active, eliminating start-up delays.

The MAX1270/MAX1271 are available in 24-pin narrow DIP or space-saving 28-pin SSOP packages.

Applications

• Automatic Testing
• Battery-Powered Instruments
• Data Acquisition Systems
• Industrial Control Systems
• Medical Instruments
• Robotics
