ADT7301

PRODUCTION

13-Bit, ±1ºC Accurate, MicroPower Digital Temperature Sensor in 6-Lead SOT-23 and 8-Lead MSOP

Analog Devices ADT7301 Product Info

10 February 2026 4

Features

13-Bit Temperature-to-Digital Converter
-40°C to +150°C Operating Temperature Range
±0.5°C Typical Accuracy, ±1°C Max Accuracy
Shutdown Current of 1 µA
Power dissipation of 0.631 mW at V_DD = 3.3 V

SPI- and DSP-Compatible Serial Interface
Shutdown Mode
Space-Saving SOT-23 and MSOP Packages
Compatible with the AD7814 Applications

Part details & applications

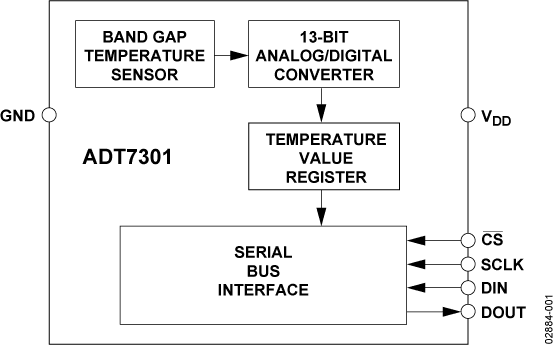

The ADT7301 is a complete temperature monitoring system in SOT-23 and MSOP packages. It contains a band gap temperature sensor and a 13-bit ADC to monitor and digitize the temperature reading to a resolution of 0.03125°C.

The ADT7301 has a flexible serial interface that allows easy interfacing to most microcontrollers. The interface is compatible with SPI^™, QSPI and MICROWIRE^™ protocol and is also compatible with DSPs. The part features a standby mode that is controlled via the serial interface. The ADT7301's wide supply voltage range, low supply current and SPI-compatible interface, make it ideal for a variety of applications, including personal computers, office equipment, automotive and domestic appliances. The ADT7301 is rated for operation over the −40°C to +150°C temperature range. It is not recommended to operate the device at temperatures above +125°C for greater than a total of 5% (5,000 hours) of the lifetime of the device. Exposure beyond this limit affects device reliability.

PRODUCT HIGHLIGHTS

On-chip temperature sensor that allows an accurate measurement of the ambient temperature. The measurable temperature range is −40°C to +150°C.
Supply voltage of 2.7 V to 5.25 V.

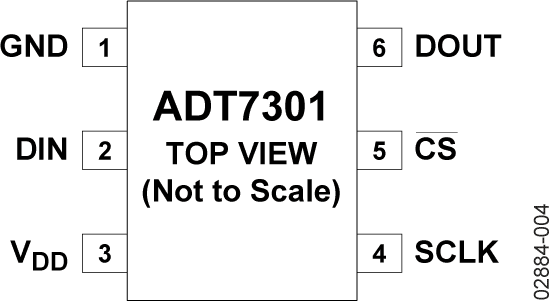

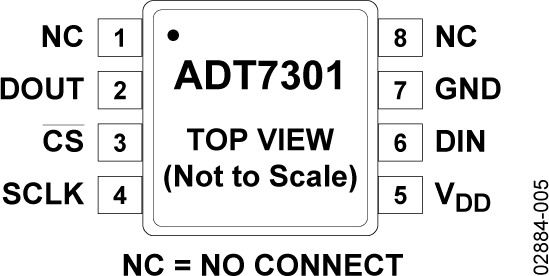

Space-saving 6-lead SOT-23 and 8-lead MSOP packages.
Typical temperature accuracy of ±0.5°C.
13-bit temperature reading to 0.03125°C resolution.
Shutdown mode that reduces the power consumption to 4.88 μW with V_DD = 3.3 V @ 1 SPS.
Compatible with AD7814.

APPLICATIONS

Medical equipment
Automotive
Environmental controls
Oil Temperature
Hydraulic systems
Cellular phones
Hard disk drives
Personal computers
Electronic test equipment
