Analog Devices MAX127 Product Info

• 12-Bit Resolution, 1/2 LSB Linearity
• +5V Single-Supply Operation
• I²C-Compatible, 2-Wire Serial Interface
• Four Software-Selectable Input Ranges
  • MAX127: 0 to +10V, 0 to +5V, ±10V, ±5V
  • MAX128: 0 to +V_REF, 0 to +V_REF/2, ±V_REF, ±V_REF/2
• 8 Analog Input Channels
• 8ksps Sampling Rate
• ±16.5V Overvoltage-Tolerant Input Multiplexer
• Internal 4.096V or External Reference
• Two Power-Down Modes
• 24-Pin Narrow PDIP or 28-Pin SSOP Packages

The MAX127/MAX128 are multirange, 12-bit data acquisition systems (DAS) that require only a single +5V supply for operation, yet accept signals at their analog inputs that may span above the power-supply rail and below ground. These systems provide eight analog input channels that are independently software programmable for a variety of ranges: ±10V, ±5V, 0 to +10V, 0 to +5V for the MAX127; and ±V_REF, ±V_REF/2, 0 to +V_REF, 0 to +V_REF/2 for the MAX128. This range switching increases the effective dynamic range to 14 bits and provides the flexibility to interface 4–20mA, ±12V, and ±15V-powered sensors directly to a single +5V system. In addition, these converters are fault protected to ±16.5V; a fault condition on any channel will not affect the conversion result of the selected channel. Other features include a 5MHz bandwidth track/hold, an 8ksps throughput rate, and the option of an internal 4.096V or external reference.

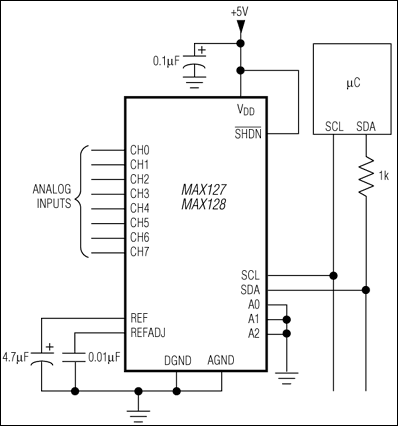

The MAX127/MAX128 feature a 2-wire, I²C-compatible serial interface that allows communication among multiple devices using SDA and SCL lines.

A hardware shutdown input (SHDN) and two software-programmable power-down modes (standby and full power-down) are provided for low-current shutdown between conversions. In standby mode, the reference buffer remains active, eliminating startup delays.

The MAX127/MAX128 are available in 24-pin narrow PDIP or space-saving 28-pin SSOP packages.

Applications

• Battery-Powered Applications
• Data Acquisition
• Industrial Control Systems
• Robotics
