Analog Devices MAX11167 Product Info

• High DC/AC Accuracy Improves Measurement Quality
  • 16-Bit Resolution with No Missing Codes
  • 250ksps Throughput Rates without Pipeline Delay/Latency
  • 93.2dB SNR and -102.5dB THD at 10kHz
  • 0.5 LSB_RMS Transition Noise
  • ±0.2 LSB DNL (typ) and ±0.4 LSB INL (typ)
• Highly Integrated ADC Saves Cost and Space
  • ±6.7ppm/°C Internal Reference
  • Internal Reference Buffer
• Wide Supply Range and Low Power Simplify Power-Supply Design
  • 5V Analog Supply
  • 2.3V to 5V Digital Supply
  • 21.2mW Power Consumption at 250ksps
  • 10µA in Shutdown Mode
• Multi-Industry Standard Serial Interface and Small Package Reduce Size
  • SPI/QSPI™/MICROWIRE^®/DSP-Compatible Serial Interface
  • 3mm x 3mm Tiny 12-Pin TDFN Package

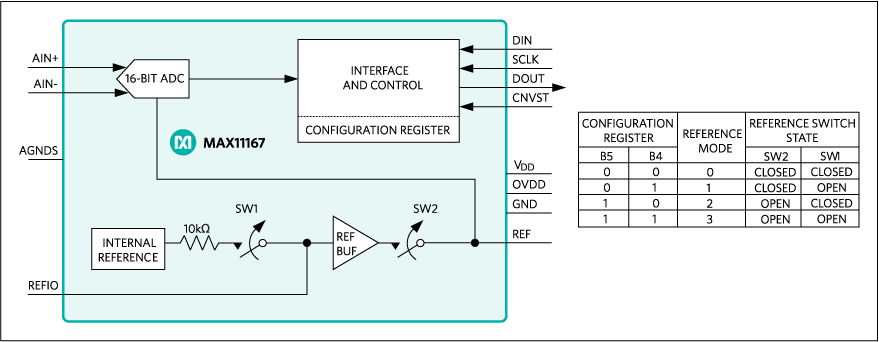

The MAX11167 16-bit, 250ksps, SAR ADC offers excellent AC and DC performance with true bipolar input range, small size, and internal reference. The MAX11167 measures a ± 5V (10V_P-P) input range while operating from a single 5V supply. A patented charge-pump architecture allows direct sampling of high-impedance sources. The MAX11167 integrates an optional 6.7ppm/^°C reference with internal buffer, saving the cost and space of an external reference.

This ADC achieves 93.2dB SNR and -102.5dB THD. The MAX11167 guarantees 16-bit no-missing codes and ±0.5 LSB INL (typ).

The MAX11167 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs in parallel for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.

The MAX11167 is offered in a 12-pin, 3mm x 3mm, TDFN package and is specified over the -40^°C to +85^°C temperature range.

Applications

• Automatic Test Equipment
• Data Acquisition Systems
• Industrial Control Systems/Process Control
• Medical Instrumentation
