Analog Devices MAX111 Product Info

• Single +5V Supply (MAX111)
• Two Differential Input Channels
• 14-Bit Resolution Plus Sign and Overrange
• 0.03% Linearity (MAX110)
  0.05% Linearity (MAX111)
• Low Power Consumption:

  • 550µA (MAX110)
  • 640µA (MAX111)
  • 4µA Shutdown Current
• Up to 50 Conversions/sec
• 50Hz/60Hz Rejection
• Auto-Calibration Mode
• No External Components Required
• 16-Pin DIP/SO, 20-Pin SSOP

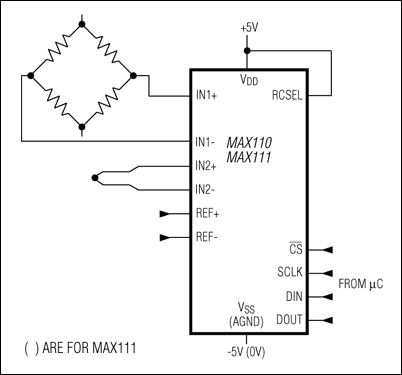

The MAX110/MAX111 analog-to-digital converters (ADCs) use an internal auto-calibration technique to achieve 14-bit resolution plus overrange, with no external components. Operating supply current is only 550µA (MAX110) and reduces to 4µA in power-down mode, making these ADCs ideal for high-resolution battery-powered or remote-sensing applications. A fast serial interface simplifies signal routing and opto-isolation, saves microcontroller pins, and offers compatibility with SPI™, QSPI™, and MICROWIRE™. The MAX110 operates with ±5V supplies, and converts differential analog signals in the -3V to +3V range. The MAX111 operates with a single +5V supply and converts differential analog signals in the ±1.5V range, or single-ended signals in the 0V to +1.5V range.

Internal calibration allows for both offset and gain-error correction under microprocessor (µP) control. Both devices are available in space-saving 16-pin DIP and SO packages, as well as an even smaller 20-pin SSOP package.

Applications

• Data Acquisition
• Panel Meters
• Process Control
• Temperature Measurement
• Weigh Scales
