Analog Devices MAX1086 Product Info

• Single-Supply Operation
  • +3V (MAX1087/MAX1089)
  • +5V (MAX1086/MAX1088)
• AutoShutdown Between Conversions
• Low Power
  • 200µA at 150ksps
  • 130µA at 100ksps
  • 65µA at 50ksps
  • 13µA at 10ksps
  • 1.5µA at 1ksps
  • 0.2µA in Shutdown
• True-Differential Track/Hold, 150kHz Sampling Rate
• Software-Configurable Unipolar/Bipolar Conversion (MAX1088/MAX1089 only)
• SPI, QSPI, MICROWIRE-Compatible Interface for DSPs and Processors
• Internal Conversion Clock

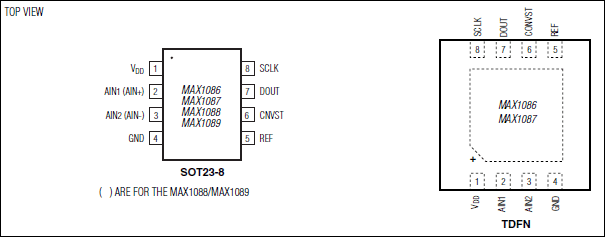

• 8-Pin SOT23 and 8-Pin TDFN Packages

The MAX1086–MAX1089 are low-cost, micropower, serial output 10-bit analog-to-digital converters (ADCs) available in a tiny 8-pin SOT23. The MAX1086/MAX1088 operate with a single +5V supply. The MAX1087/MAX1089 operate with a single +3V supply. The devices feature a successive-approximation ADC, automatic shutdown, fast wake-up (1.4µs), and a high-speed 3-wire interface. Power consumption is only 0.5mW (V_DD = +2.7V) at the maximum sampling rate of 150ksps. AutoShutdown™ (0.1µA) between conversions results in reduced power consumption at slower throughput rates.

The MAX1086/MAX1087 provide 2-channel, single-ended operation and accept input signals from 0 to V_REF. The MAX1088/MAX1089 accept true-differential inputs ranging from 0 to V_REF. Data is accessed using an external clock through the 3-wire SPI™, QSPI™, and MICROWIRE™-compatible serial interface. Excellent dynamic performance, low-power, ease of use, and small package size, make these converters ideal for portable battery-powered data acquisition applications, and for other applications that demand low power consumption and minimal space.

Applications

• Automated Test Equipment (ATE)
• Automotive Passenger Compartment
• Automotive Sensors
• Industrial Sensor Transmitters/Transducers
• Industrial Sensor Transmitters/Transducers
• Motor and Motion Control
• Portable Patient Monitoring/Delivery
• Portable Test Meters
• Programmable Logic Controllers
• Sensor-Force
• Sensors-Pressure
• Test and Measurement Equipment
• X-Ray and Ultrasound Diagnostics
