LTM8053

RECOMMENDED FOR NEW DESIGNS

40VIN, 3.5A/6A Step-Down Silent Switcher μModule Regulator

Analog Devices LTM8053 Product Info

10 February 2026 8

Features

Complete Step-Down Switch Mode Power Supply
Low Noise Silent Switcher^® Architecture
Wide Input Voltage Range: 3.4V to 40V
Wide Output Voltage Range: 0.97V to 15V
3.5A Continuous Output Current at 12V_IN, 5V_OUT, T_A = 85°C

6A Peak Output Current
Parallelable for Increased Output Current
Selectable Switching Frequency: 200kHz to 3MHz

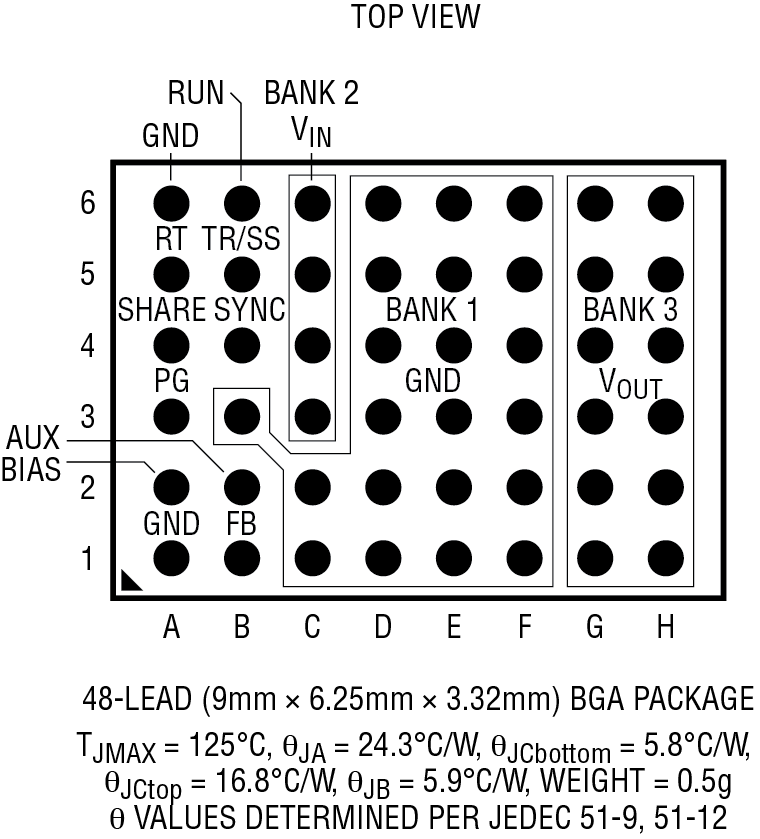

Tiny, Low Profile 6.25mm × 9mm × 3.32mm RoHS Compliant BGA Package

Part details & applications

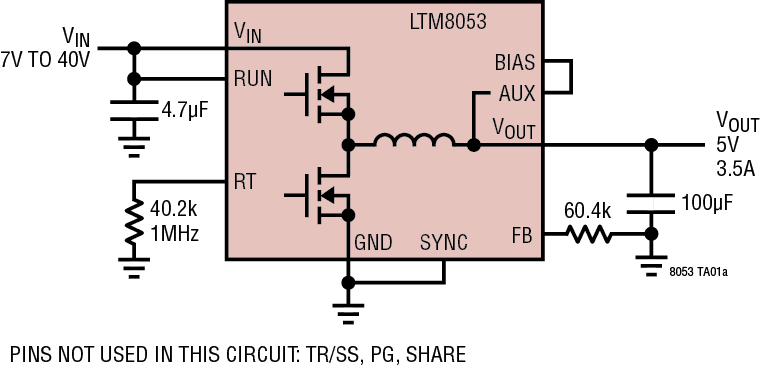

The LTM8053 is a 40V_IN, 3.5A continuous, 6A peak step-down µModule^® (power module) regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.4V to 40V, the LTM8053 / LTM8053- 1 supports an output voltage range of 0.97V to 15V and a switching frequency range of 200kHz to 3MHz, each set by a single resistor. Only the input and output filter capacitors are needed to finish the design. The LTM8053-1 can operate in forced continuous mode.

The low profile package enables utilization of unused space on the bottom of PC boards for high density point of load regulation. The LTM8053 / LTM8053-1 is packaged in a thermally enhanced, compact over-molded ball grid array (BGA) package suitable for automated assembly by standard surface mount equipment. The LTM8053 / LTM8053-1 is RoHS compliant.

APPLICATIONS

Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation
