LTM8025

PRODUCTION

36V, 3A Step-Down µModule Regulator

Analog Devices LTM8025 Product Info

10 February 2026 6

Features

Complete Step-Down Switch Mode Power Supply
Wide Input Voltage Range: 3.6V to 36V
Up to 3A Output Current
Parallelable for Increased Output Current
0.8V to 24V Output Voltage
Selectable Switching Frequency: 200kHz to 2.4MHz

Current Mode Control
SnPb or RoHS Compliant Finish
Programmable Soft-Start

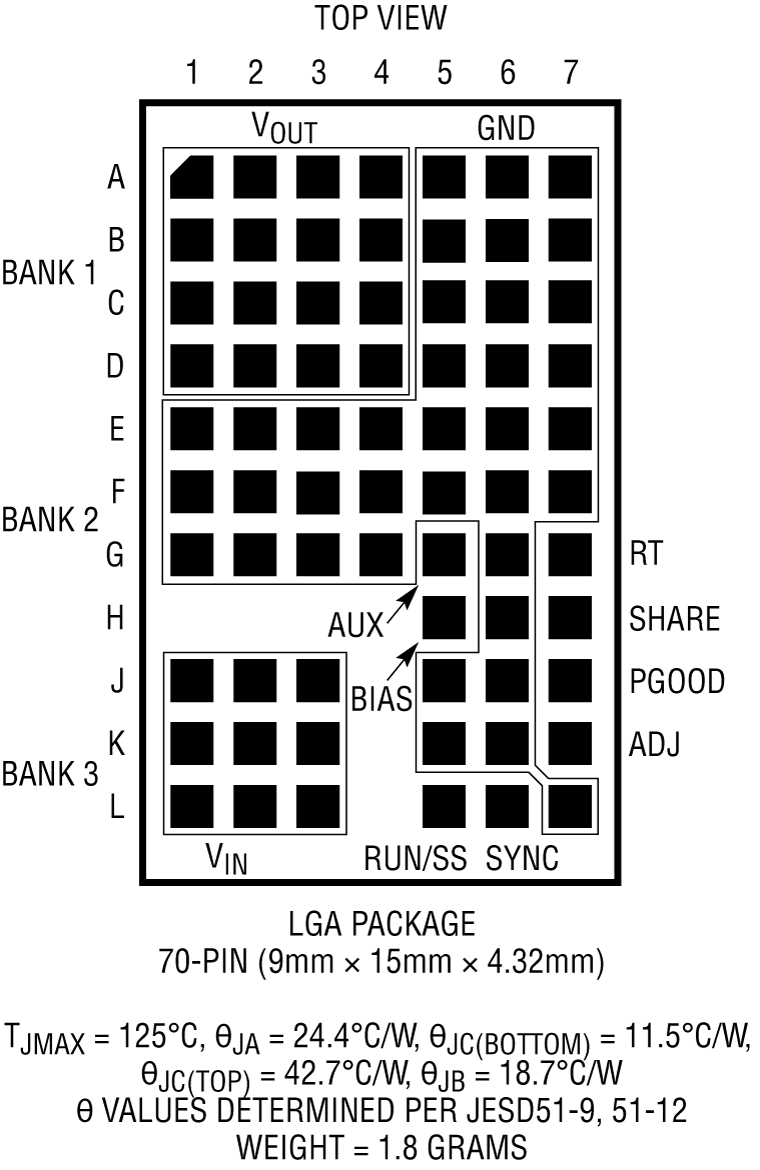

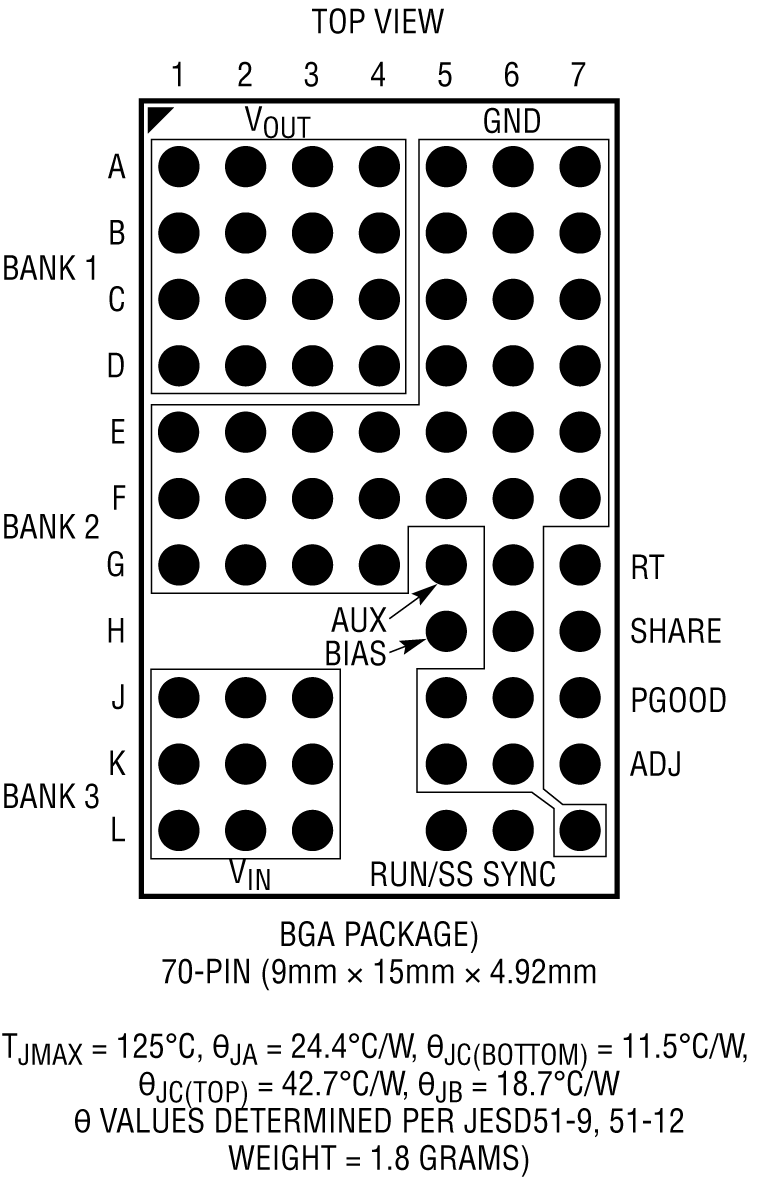

9mm × 15mm × 4.32mm LGA and 9mm × 15mm × 4.92mm BGA Packages

Part details & applications

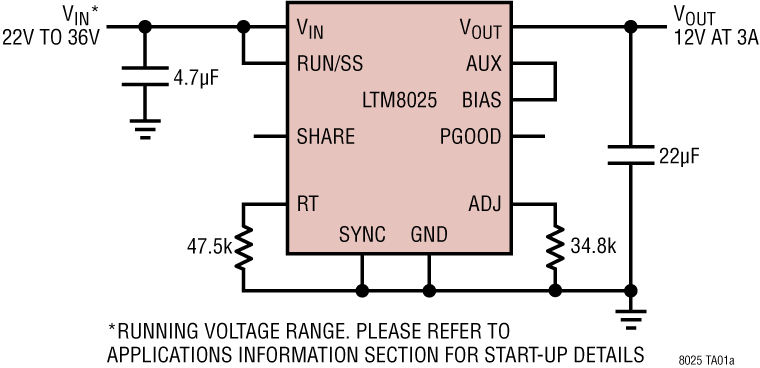

The LTM8025 is a 36V_IN, 3A step-down µModule^® (micromodule) converter. Included in the package are the switching controller, power switches, inductor and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8025 supports an output voltage range of 0.8V to 24V and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The LTM8025 is packaged in a thermally enhanced, compact (9mm × 15mm) and low profile over-molded land grid array (LGA) and ball grid array (BGA) packages suitable for automated assembly by standard surface mount equipment. The LTM8025 is available with SnPb (BGA) or RoHS compliant terminal finish.

APPLICATIONS

Automotive Battery Regulation
Power for Portable Products
Distributed Supply Regulation
Industrial Supplies
Wall Transformer Regulation
