Analog Devices LTM8022 Product Info

• Complete Step-Down Switch Mode Power Supply
• Wide Input Voltage Range: 3.6V to 36V
• 0.8V to 10V Output Voltage
• 1A Output Current
• Adjustable Switching Frequency: 200kHz to 2.4MHz
• Current Mode Control
• (e4) RoHS Compliant Package with Gold Pad Finish
• Programmable Soft-Start

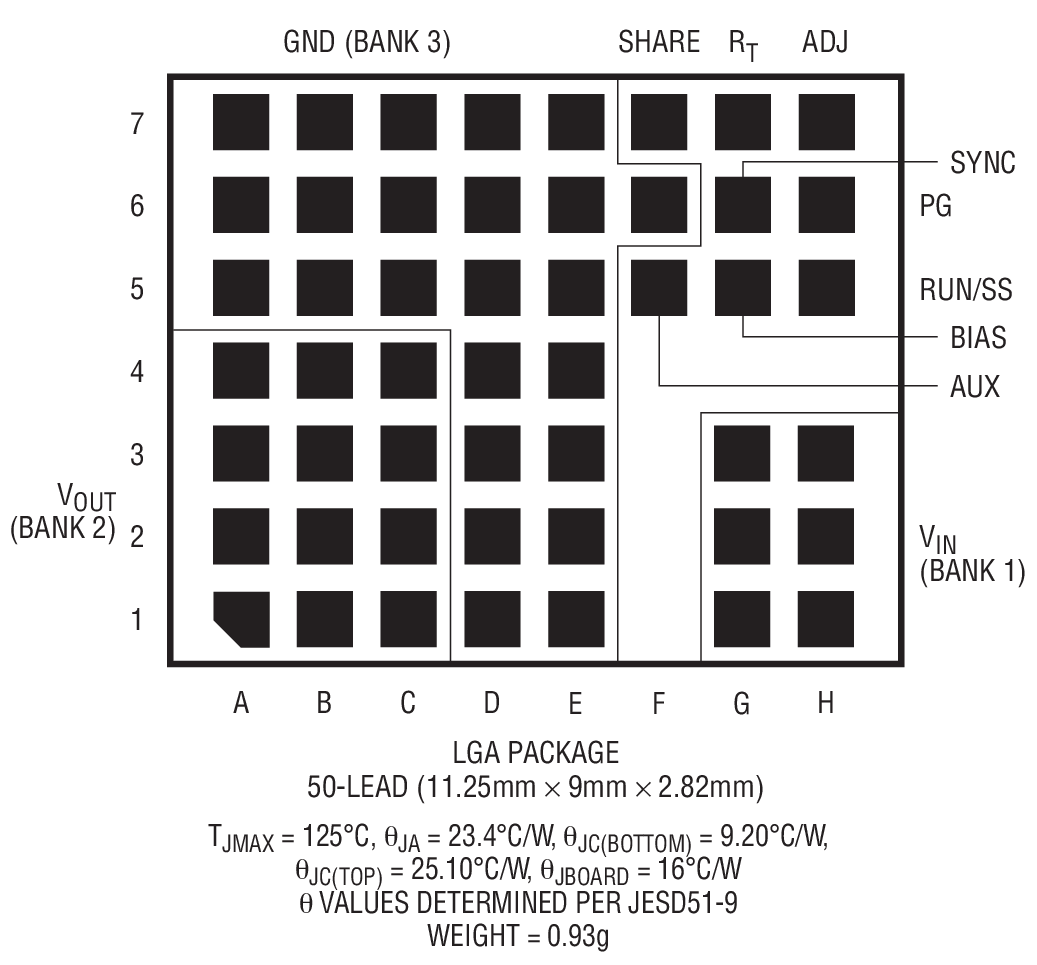

• Tiny, Low Profile (11.25mm × 9mm × 2.82mm) Surface Mount LGA Package

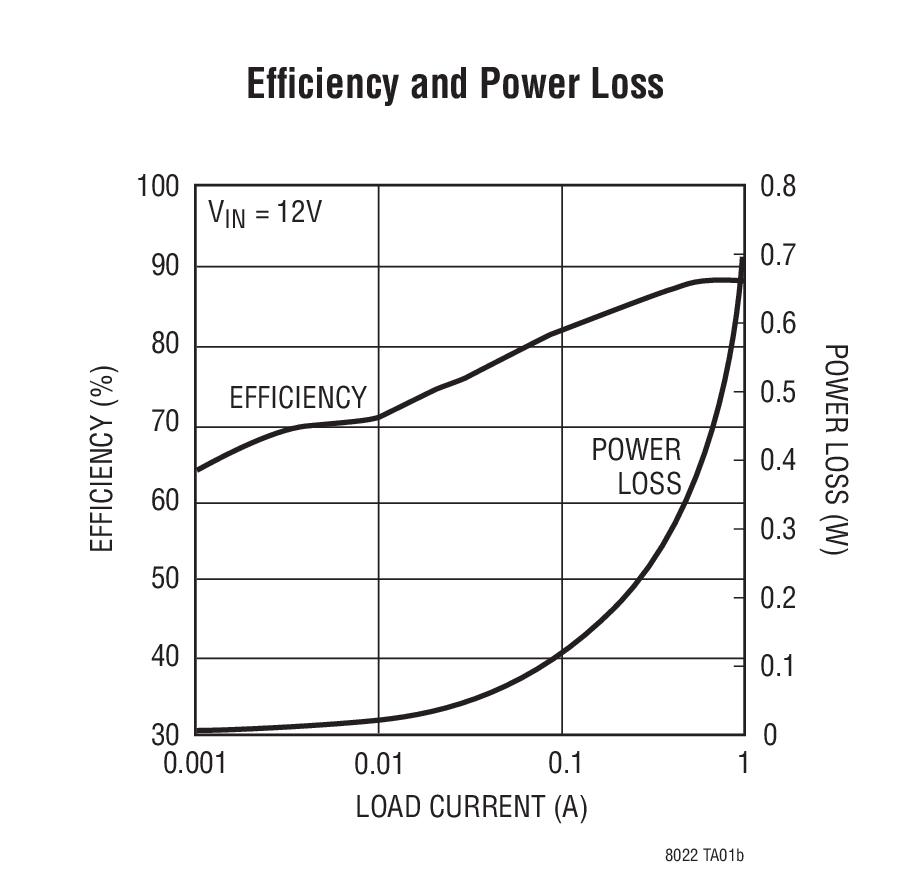

The LTM8022 is a complete 1A, DC/DC μModule (power module) step-down regulator. Included in the package are the switching controller, power switches, inductor, and all support components. Operating over an input voltage range of 3.6V to 36V, the LTM8022 supports an output voltage range of 0.8V to 10V, and a switching frequency range of 200kHz to 2.4MHz, each set by a single resistor. Only the bulk input and output filter capacitors are needed to finish the design.

The low profile package (2.82mm) enables utilization of unused space on the bottom of PC boards for high density point of load regulation.

The LTM8022 is packaged in a thermally enhanced, compact (11.25mm × 9mm) and low profile (2.82mm) overmolded land grid array (LGA) package suitable for automated assembly by standard surface mount equipment. The LTM8022 is RoHS compliant.

Applications

• Automotive Battery Regulation
• Power for Portable Products
• Distributed Supply Regulation
• Industrial Supplies
• Wall Transformer Regulation
