LTM4670

RECOMMENDED FOR NEW DESIGNS

Low VIN, Quad μModule Regulator with Configurable 10A Output Array

Analog Devices LTM4670 Product Info

10 February 2026 5

Features

Quad Output Step-Down μModule Regulator with 10A per Output
Input Voltage Range: 2.25V to 5.5V
Output Voltage Range: 0.5V to V_IN
10A DC Output Current Each Channel
Ultra Low EMI Noise
Parallelable for Up to 40A Output Current
Selectable Pulse-Skipping Mode/Forced Continuous Mode

Output Voltage Tracking
Die Temperature Monitoring Output
External Frequency Synchronization
Power Good Indicator
Overvoltage, Overcurrent and Overtemperature Protection

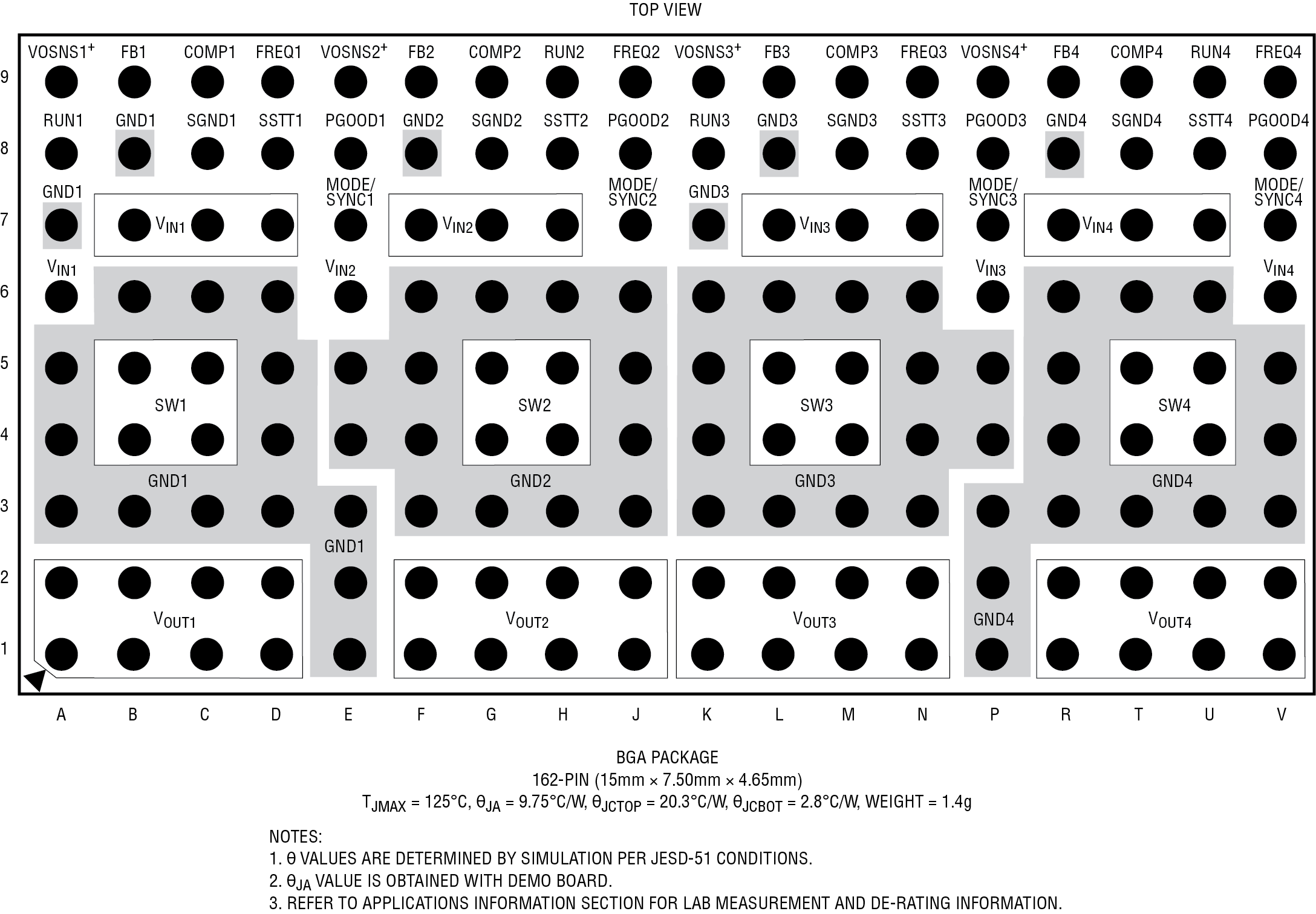

7.5mm × 15mm × 4.65mm BGA Package

Part details & applications

The LTM4670 is a quad DC/DC step-down μModule^® (micromodule) regulator with 10A per output. Outputs can be paralleled in an array for up to 40A capability. Included in the package are the switching controller, power MOSFETs, inductor and all support components. Operating over an input voltage range of 2.25V to 5.5V, each output voltage ranges from 0.5V to V_IN set by only one external resistor. Its high efficiency design delivers 10A continuous output current per channel. Only a few input and output capacitors are needed.

The LTM4670 employs a Silent Switcher^®2 architecture with internal hot loop bypass capacitors to achieve both low EMI and high efficiency. The default frequency is internally set to 2MHz, it can be externally synchronized to a clock from 1MHz to 2.6MHz.

Fault protection features include overvoltage, overcurrent and overtemperature protection. The LTM4670 is Pb-free and RoHS compliant.

APPLICATIONS

Telecom, Networking and Industrial Equipment
Multirail Point-of-Load Regulation
FPGAs, DSPs and ASICs Applications
