MAX5544

PRODUCTION

Low-Cost, +5V, Serial-Input, Voltage-Output, 14-Bit DAC Lowest Cost 14-Bit DAC

Analog Devices MAX5544 Product Info

10 February 2026 5

Features

Full 14-Bit Performance Without Adjustments
+5V Single-Supply Operation
Low Power: 1.5mW
1µs Settling Time
Unbuffered Voltage Output Directly Drives 60kΩ Loads
SPI/QSPI/MICROWIRE-Compatible Serial Interface
Power-On Reset Circuit Clears DAC Output to 0V (unipolar mode)
Schmitt Trigger Inputs for Direct Optocoupler Interface

Part details & applications

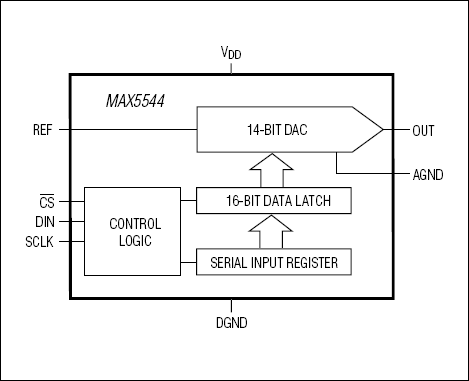

The MAX5544 serial-input, voltage-output, 14-bit monotonic digital-to-analog converter (DAC) operates from a single +5V supply. The DAC output is unbuffered, resulting in low 0.3mA supply current and low 1 LSB offset error. The DAC output range is 0V to V_REF. The DAC latch accepts a 16-bit serial word. A power-on reset circuit clears the DAC output to 0V (unipolar mode) when power is initially applied. The 10MHz 3-wire serial interface is SPI™/QSPI™/MICROWIRE™ compatible and interfaces directly with optocouplers for applications requiring isolation. The MAX5544 is available in an 8-pin SO package.

Applications

Automated Test Equipment (ATE)
Data Acquisition
High-Resolution Offset and Gain Adjustment
Industrial Process Controls
